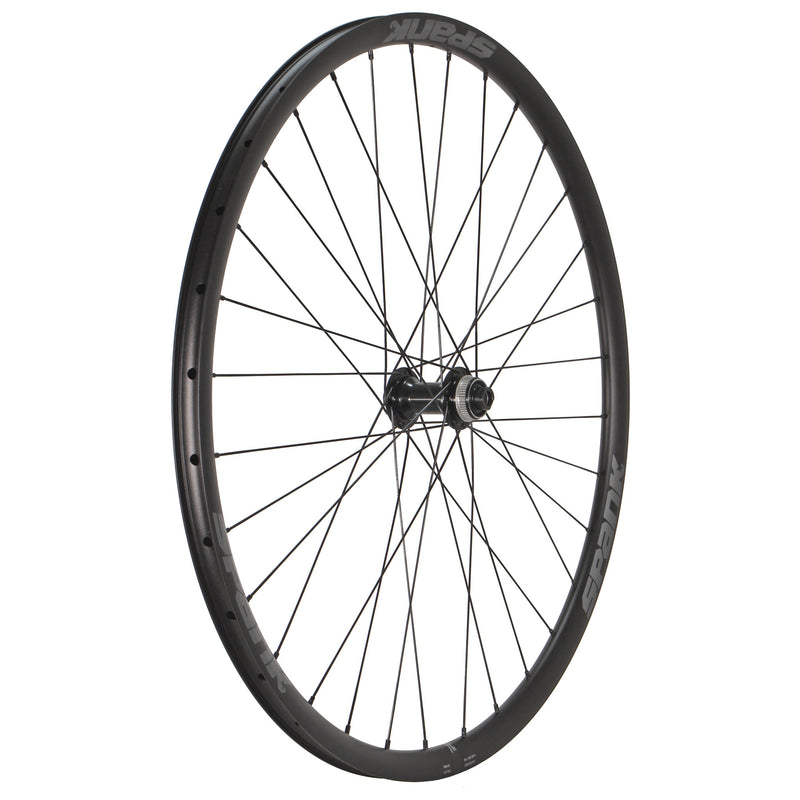

Load image into Gallery viewer, Wheel Factory Spank Wing22 700c Shimano Tiagra 12x100 CL

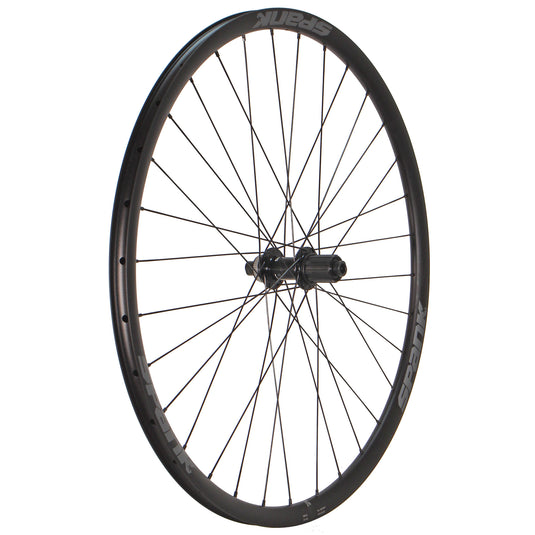

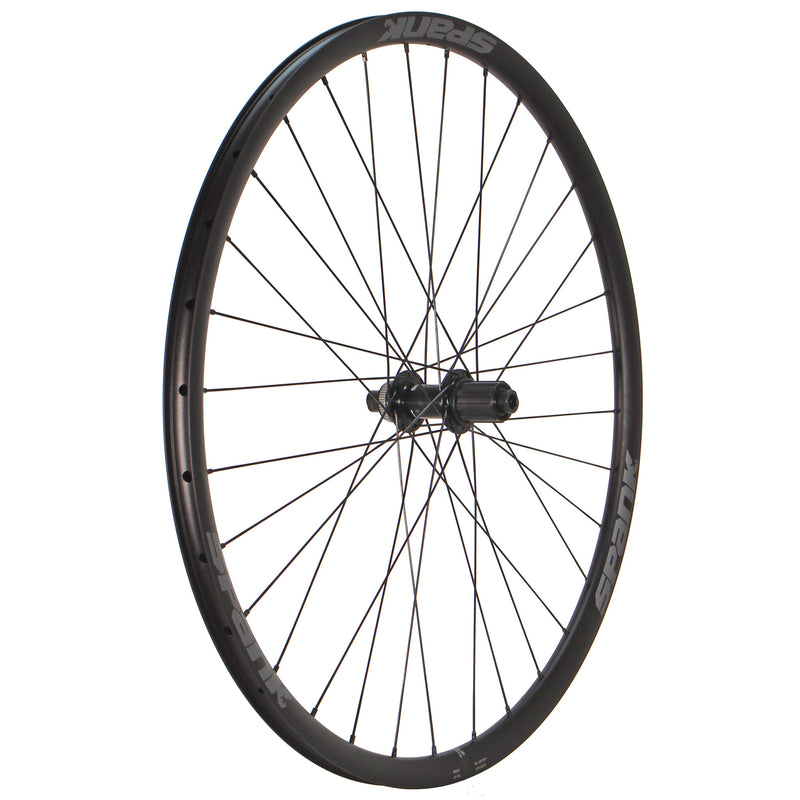

Load image into Gallery viewer, Wheel Factory Spank Wing22 700c Shimano Tiagra 12x142 HG-rd CL

Wheel Factory Spank Wing22 / Shimano Tiagra 700c Gravel Wheels

SKU: WY7089

Vendor Wheel Factory
Regular price $188.99
Sale price $188.99 Regular price $188.99
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
I've found in a better price
Axle Size:
In Stock
This is a pre order item. We will ship it when it comes in stock.
  • Wheel Factory hand built wheels
  • Spank Wing 22 rims are disc specific, tubeless ready, clincher rim, optimized for mixed on/off road use
  • Moderate 22mm inner width, provides exceptional versatility in tire pairing, from wide road slicks to gravel knobbies
  • Deep well 24.5mm profile height, enhances aero properties, as well as stiffness and torsional rigidity
  • Bead Nip tubeless bead seats provide reliable tubeless performance even at low pressures
  • Dynamal alloy is shot peen finish, heightening durability and fatigue life
  • Shimano Tiagra 470 series Center Lock hubs
  • Forged aluminum shell with HG road 11 speed steel freehub body
  • Black double butted spokes and brass nipples
  • Built with DT Swiss Competition double butted spokes (2.0/1.8/2.0) and brass DT Swiss Squorx nipples
  • Hand laced and trued in the USA
Model Wing 22/RS470
Size 700c
Front/Rear Front, Rear (HG 11sp road)
Axle/Spacing (mm) 12x100, 12x142
Hub RS470
Hole 32
Brake Center Lock
Rim Wing 22
Internal W 22mm
Depth 24.5mm
Material Aluminum
Type Tubeless
Color (H/S/R) Black
Weight 1010g, 855g
