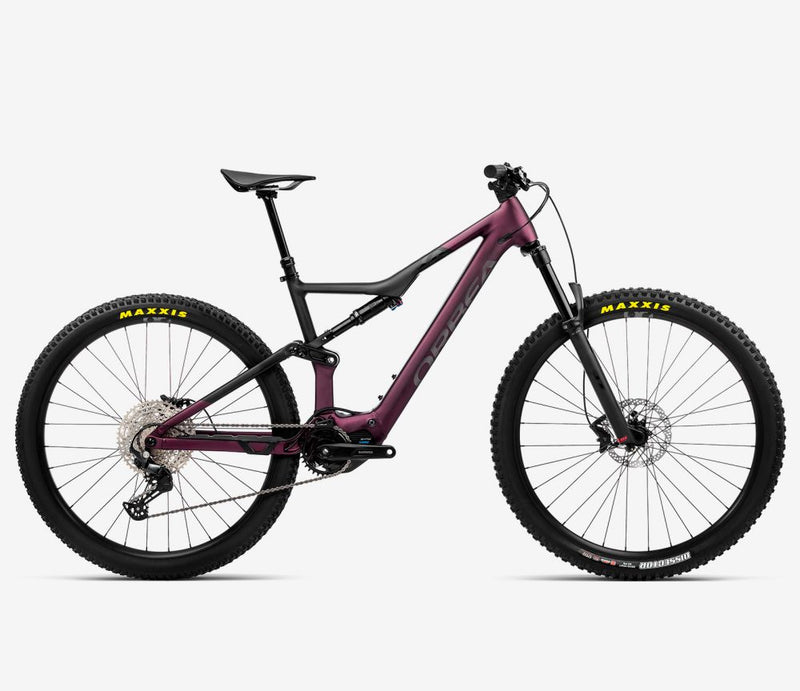

Orbea Rise H30 20MPH (2023). Rise helped set the standard for lightweight e-mountain bikes with the “more bike, less E” approach. The goal is simple: a natural ride feel that stays playful and responsive, while the assist helps you ride farther and climb more without turning the bike into a heavy, overpowered machine.
Key highlights
- Ride feel: Lightweight e-MTB handling with a more natural assist
- Suspension: 140mm travel front and rear for Trail Ready riding
- Drive system: Shimano EP600-RS with Orbea RS tuning
- Range: 540Wh internal battery, optional 250Wh range extender
Motor and system
- Motor: Shimano EP600-RS
- Battery: Orbea internal 540Wh (optional 250Wh range extender)
- Remote: EN600-L
- Charging: Orbea Smart Charger 42V / 2–4A
Ride characteristics
- Quick handling for an e-bike, designed to feel like a mountain bike first
- Easy to pop, manual, and change lines through corners
- Efficient climber without feeling heavy or muted on flatter trails
- A great fit for riders who want assist without the “full power” feel
Fit, setup, and recommended upgrades
- We want every rider, local or remote, to get the best performance from their new Orbea Rise.
- Local pickup customers: We can set suspension sag, rebound, and tire pressures so the bike is tuned correctly for your weight and local terrain.
- Shipped bikes: The bike arrives professionally assembled and test ridden. If you need help with suspension or cockpit setup at home, our staff can walk you through the basics or answer questions before your first ride.
- Recommended upgrades: Many riders choose to add pedals, body protection, or cockpit adjustments (grips, bar width, stem length) to match their riding style. If you would like suggestions, we can help you choose options that complement the bike’s geometry and intended use.
Rise H30 20MPH (2023) - Full specifications
Frame
| Frame | Orbea Rise Hydro, 140mm travel, 29", Boost 12x148 |
| Warranty | Lifetime frame warranty for the original owner |
Suspension
| Fork | Marzocchi Bomber Z2, 140mm, QR15x110 |
| Rear shock | Fox Float DPS Performance, 3-position EVOL, custom tune, 210x55mm |
Wheels and tires
| Wheels | Alloy, tubeless, 29", 29c, 32H |
| Front tire | Maxxis Dissector 2.40", 60 TPI, 3C MaxxTerra, EXO, tubeless ready |
| Rear tire | Maxxis Rekon 2.40", 120 TPI, 3C MaxxTerra, EXO+, tubeless ready |
Drivetrain
| Rear shifter | Shimano Deore M6100 |
| Rear derailleur | Shimano Deore M6100 SGS Shadow Plus |
| Crankset | Shimano Steps EM600 |
| Chainring | e*thirteen e*spec direct mount 32T Boost |
| Cassette | Shimano CS-M6100 10-51t, 12-speed |
| Chain | Shimano M6100 |
| Chainguide | Orbea Rise chainguide |
Brakes
| Front brake | Shimano MT410 hydraulic disc |
| Front rotor | 180mm |
| Rear brake | Shimano MT410 hydraulic disc |
| Rear rotor | 180mm |
| Brake levers | Shimano |
Cockpit
| Handlebar | OC Mountain Control MC31, Rise20, 800mm |
| Stem | OC Mountain Control MC20, 0° |
| Seatpost | OC Mountain Control MC20, 31.6mm, dropper |
| Headset | Acros Alloy integrated, 1-1/8" to 1-1/2" |
| Saddle | Selle Italia Model X, FeC Alloy Rail, 145x248mm |
| Dropper lever | Shimano SL-MT500 |
Motor and battery
| Drive unit | Shimano EP600-RS |
| Battery | Orbea internal 540Wh (optional 250Wh range extender) |
| Charger | Orbea 2.Generation eBike Smart charger, 42V / 2–4A |
| Remote | EN600-L |
Sizing and fit
Height ranges are based on the manufacturer’s recommended sizing chart. If you are between sizes, compare stack and reach to a bike you already like.
| Size | Recommended height (approx.) | Approx. reach |
|---|---|---|
| XS | 148–158 cm (4'10"–5'2") | N/A |
| S | 158–168 cm (5'2"–5'6") | 425 mm |
| M | 168–178 cm (5'6"–5'10") | 450 mm |
| L | 178–185 cm (5'10"–6'1") | 474 mm |
| XL | 185–193 cm (6'1"–6'4") | 500 mm |
| XXL | 193–198 cm (6'4"–6'6") | N/A |

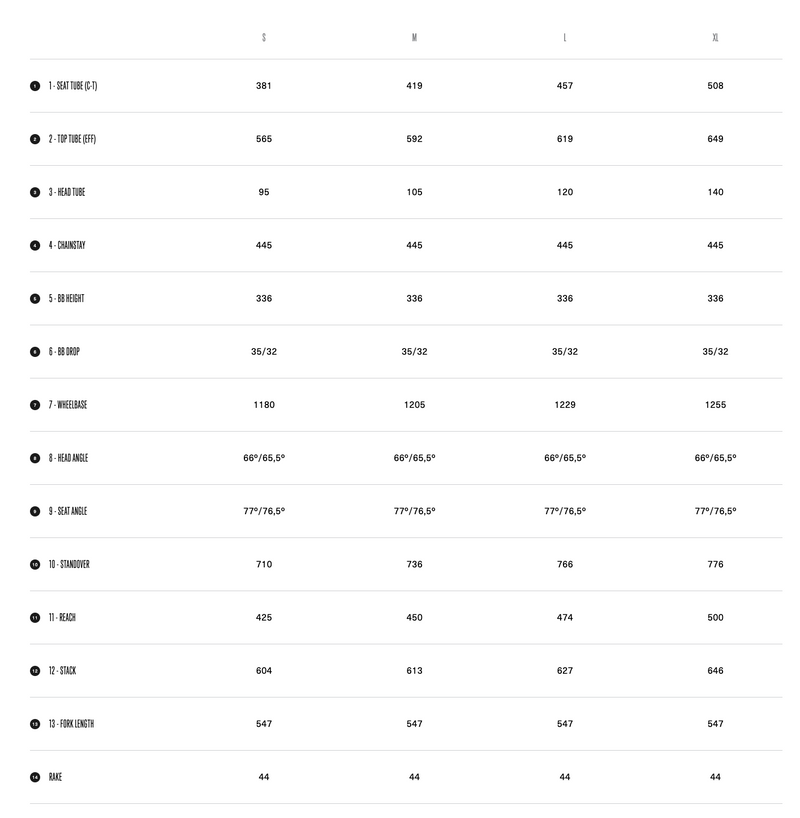

Frame geometry (mm and degrees) Tap to open chart
| S | M | L | XL | |
|---|---|---|---|---|
| Seat tube | 381 | 419 | 457 | 508 |
| Top tube (effective) | 565 | 592 | 619 | 649 |
| Head tube length | 95 | 105 | 120 | 140 |
| Chainstay | 445 | 445 | 445 | 445 |
| BB height | 336 | 336 | 336 | 336 |
| BB drop | 35/32 | 35/32 | 35/32 | 35/32 |
| Wheelbase | 1180 | 1205 | 1229 | 1255 |
| Head angle | 66°/65.5° | 66°/65.5° | 66°/65.5° | 66°/65.5° |
| Seat angle | 77°/76.5° | 77°/76.5° | 77°/76.5° | 77°/76.5° |
| Standover | 710 | 736 | 766 | 776 |
| Reach | 425 | 450 | 474 | 500 |
| Stack | 604 | 613 | 627 | 646 |
| Fork length | 547 | 547 | 547 | 547 |
| Rake | 44 | 44 | 44 | 44 |
