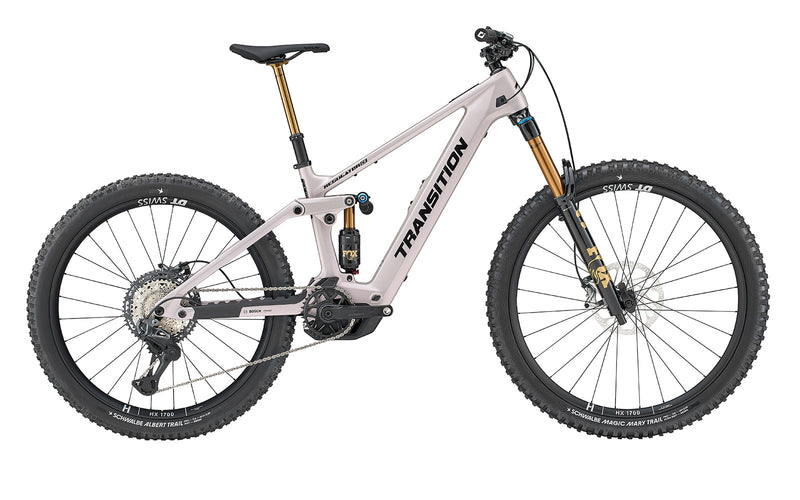

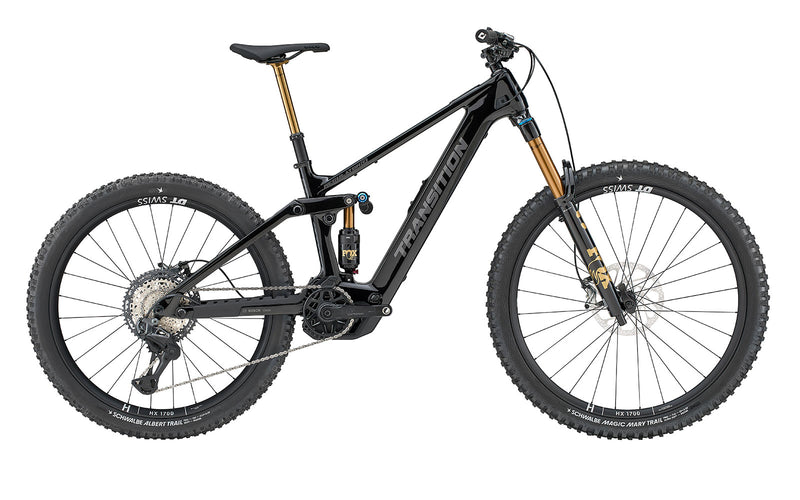

Transition Regulator CX XT Di2 (2026)
Built for aggressive all-mountain riding, the Regulator CX combines a carbon chassis, 150mm rear / 160mm front travel, and mixed-wheel geometry designed for agility and control. Designed for everything from steep technical terrain to long backcountry rides, it delivers powerful climbing assistance with a natural ride feel while pairing top-tier suspension and electronic shifting for maximum performance and precision.
Key highlights
- 160mm front / 150mm rear travel built for steep, technical terrain and high-speed descending.
- GiddyUp suspension platform for traction, composure, and consistent support.
- Mixed wheel setup (29"/27.5") for stability up front and agility out back.
- Shimano XT Di2 drivetrain delivers fast, precise electronic shifting under load.
Design and durability
- Carbon frame with 150mm rear travel.
- UDH compatible with modern drivetrains and integrated frame protection.
- Size-specific geometry for consistent handling across all sizes.
- Transition lifetime frame warranty.
Ride characteristics
- Top-tier suspension delivers maximum control on steep, rough descents.
- Balanced leverage curve keeps traction under braking and through technical terrain.
- Bosch CX motor provides powerful but controlled climbing assistance.
- Premium build kit delivers the most refined ride feel in the lineup.
Fit, setup, and recommended upgrades
- We want every rider to get the most out of their new Regulator CX.
- Local pickup customers: We can help dial in suspension sag, rebound, and cockpit setup before your first ride.
- Shipped bikes: Bikes arrive professionally assembled and test ridden. Our staff can assist with setup questions if needed.
- Recommended upgrades: Many riders choose pedals, tire inserts, upgraded tires, or larger rotors to match local trail conditions.
Ā
Transition Regulator CX XT Di2 ā Full specifications
Frame
| Frame | Regulator CX Carbon, 150mm travel, mixed wheel |
Suspension
| Fork | Fox 38 Factory Grip X2, 160mm |
| Rear shock | Fox Float X2 Factory, 205x60mm |
Wheels & tires
| Rims | DT Swiss HX 1700 |
| Front hub | DT Swiss Hybrid 350 |
| Rear hub | DT Swiss Hybrid 350 Ratchet DEG 60, anti-kickback |
| Tires | Schwalbe Magic Mary 2.5 (Front) / Schwalbe Albert 2.5 (Rear) |
Drivetrain
| Shifter | Shimano XT Di2 SW-M8250-R |
| Rear derailleur | Shimano XT Di2 RD-M8260-SGS |
| Crankset | E*Thirteen Helix Race, 155mm |
| Cassette | Shimano XT CS-M8200, 10-51t |
| Chain | Shimano XT CN-8100 |
Brakes
| Brakes | TRP EVO Pro |
| Rotors | TRP R1 2.3, 203mm |
Cockpit
| Handlebar | Race Face Era |
| Stem | Race Face Turbine R, 40mm |
| Seatpost | Fox Transfer Factory (size specific) |
| Saddle | SDG Bel Air 3 LUX |
Sizing and fit
Height ranges are based on Transitionās recommended sizing chart.
| Frame size | Recommended height |
|---|---|
| SM | 5'3" ā 5'7" |
| MD | 5'7" ā 5'10" |
| LG | 5'10" ā 6'1" |
| XL | 6'1" ā 6'4" |
Frame geometry (mm and degrees)
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Reach | 425 | 455 | 480 | 510 |
| Stack | 623 | 632 | 641 | 651 |
| Head angle | 64.5Ā° | |||
| Seat angle | 78.8Ā° | 78.5Ā° | 78.2Ā° | 77.9Ā° |
| Chainstay | 442 | 442 | 448 | 448 |
| Wheelbase | 1201 | 1235 | 1271 | 1305 |
Component note: Specifications are subject to change without notice.
