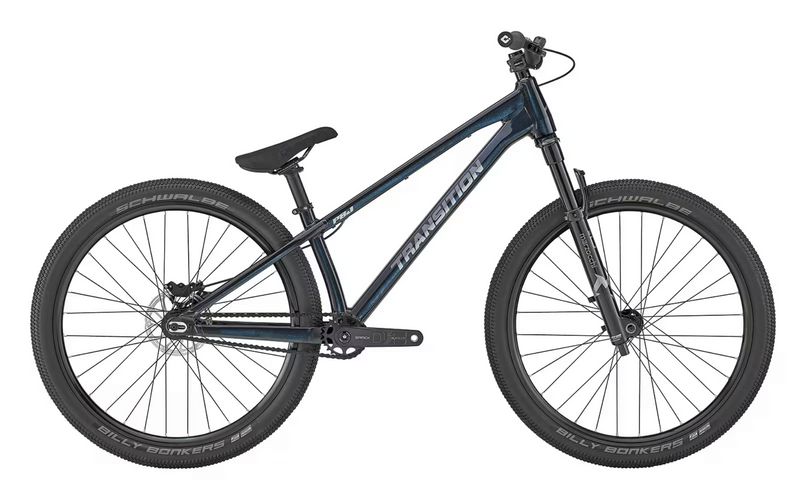

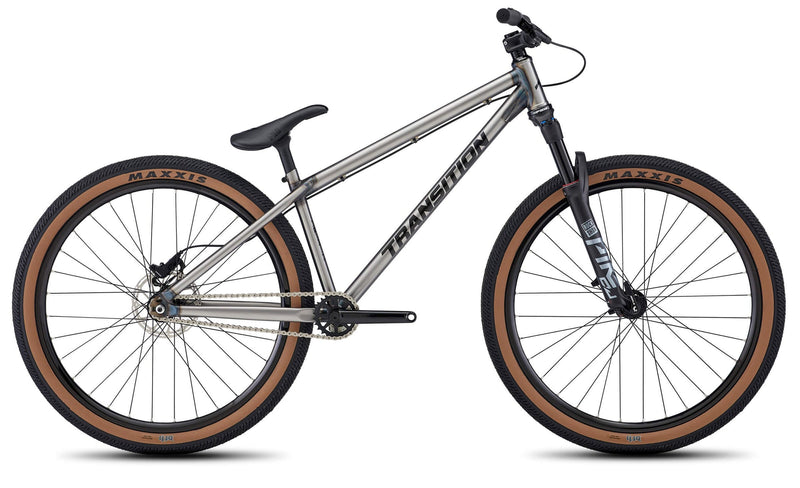

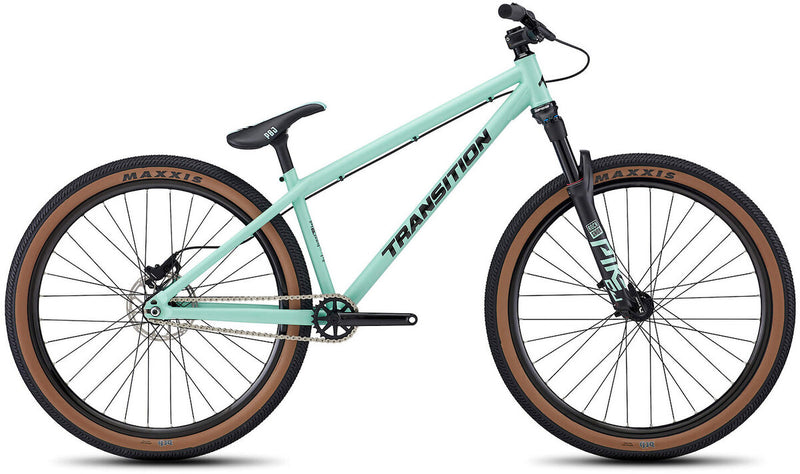

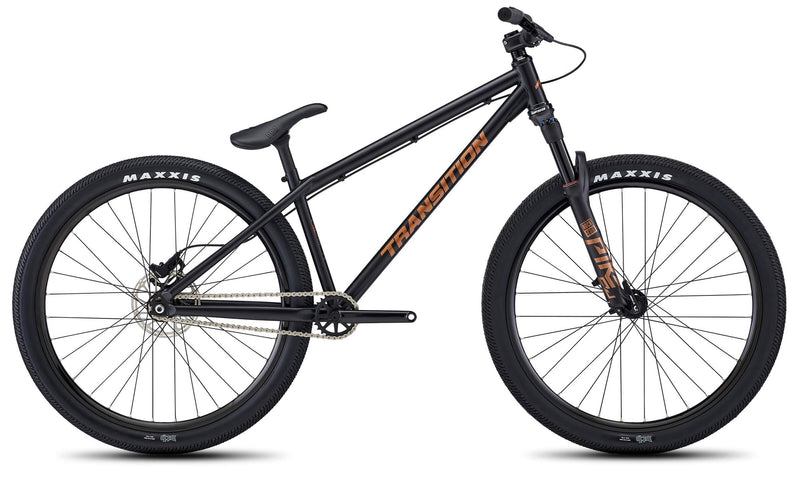

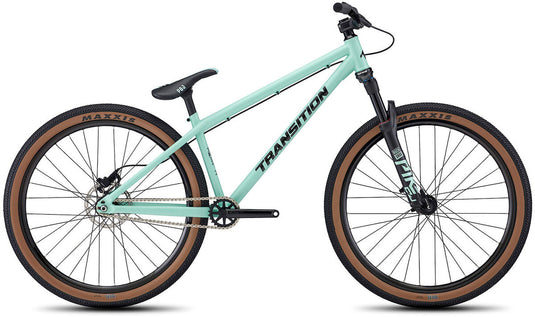

Transition PBJ
Built for dirt jumps, pump tracks, and skate park riding, the PBJ combines a hydro-formed 6061 aluminum frame, 100mm front suspension, and compact, responsive geometry. Designed to help riders generate speed and control through transitions, it delivers a quick, poppy feel while maintaining stability for bigger features and higher speeds.
Key highlights
- 100mm front travel built for jumps, pump tracks, and skate park riding.
- Rigid rear / single speed for durability and consistent power transfer.
- 26” wheels for speed, stability, and landing support.
- Adjustable chainstays (377–395mm) for tuning feel and handling.
Design and durability
- Hydro-formed 6061 aluminum frame with low standover height.
- Integrated chain tensioners for precise wheel alignment and chain tension.
- Internal or external cable routing for clean setup or easy service.
- Simple, durable build designed for repeated impacts and progression riding.
Ride characteristics
- Quick, responsive feel for pumping and generating speed.
- Short rear end makes manuals and rotations easier.
- Short size favors precision and creativity on technical features.
- Standard size adds stability for higher speeds and larger jumps.
Fit, setup, and recommended upgrades
- We want every rider to get the most out of their new PBJ.
- Local pickup customers: We can help dial in cockpit setup and brake feel before your first ride.
- Shipped bikes: Bikes arrive professionally assembled and test ridden. Our staff can assist with setup questions if needed.
- Recommended upgrades: Pedals, grips, and tire pressure adjustments to match riding style and terrain.
Transition PBJ – Full specifications
Frame
| Frame | PBJ Alloy, 26” wheels, integrated chain tensioners |
Suspension
| Fork | Marzocchi Bomber DJ, 100mm |
| Rear shock | Not applicable (hardtail) |
Wheels & tires
| Rims | Kinlin DDT32 |
| Front hub | Novatech D791SB |
| Rear hub | Novatech D256SBT |
| Tires | Schwalbe Billy Bonkers 2.25 (front and rear) |
Drivetrain
| Shifter | None (single speed) |
| Rear derailleur | None |
| Crankset | Samox 2-piece alloy, 25t / 160mm |
| Cassette | 12t single cog |
| Chain | KMC K1 Wide |
Brakes
| Brakes | SRAM DB4 (rear only) |
| Rotors | SRAM Centerline 160mm |
Cockpit
| Handlebar | Burgtec Ride Wide Alloy (780mm Short / 800mm Standard) |
| Stem | Burgtec Enduro MK3 35mm |
| Seatpost | Trans-X SP66 |
| Saddle | Burgtec Cloud Boost |
Sizing and fit
Two size options allow riders to choose based on riding style and fit preference.
| Frame size | Fit and ride feel |
|---|---|
| Short | More compact and responsive. Easier to manual, rotate, and ride technical features. |
| Standard | Longer and more stable. Better for higher speeds and larger jumps. |
Frame geometry (mm and degrees)
| Size | Short | Standard |
|---|---|---|
| Reach | 395 | 420 |
| Stack | 575 | 584 |
| Head tube angle | 69.5° | |
| Chainstay | 377–395mm | |
| Wheelbase | 1018–1036 | 1047–1065 |
Component note: Specifications are subject to change at any time without notice.
