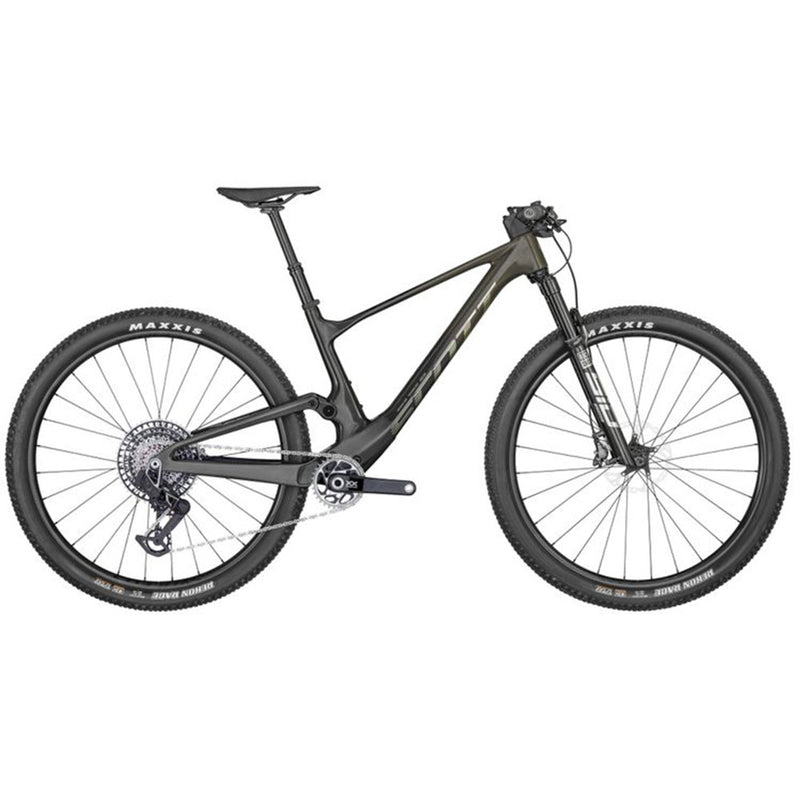

Scott Spark RC World Cup EVO TR. The Spark RC World Cup EVO is built for riders who want outright speed without giving up control when the trail turns technical. With 120mm of integrated suspension, modern cross country geometry, and input from the world’s best athletes, this is a bike designed to go fast uphill, stay composed on descents, and reward riders who push the pace.
Key highlights
- Frame: Spark RC HMX carbon frame with integrated suspension and cable routing
- Suspension travel: 120mm front and rear with on the fly adjustment
- Drivetrain: SRAM XX SL Eagle AXS Transmission wireless shifting
- Weight: Approx. 22.93 lbs in size L with tubeless setup
Suspension and system
- Fork: RockShox SID Ultimate RD3 Air with Race Day damper
- Rear shock: RockShox NUDE 5 RLC3 with travel and geometry adjustment
- Remote: Scott TwinLoc 2 with three suspension modes
- Integration: Hidden shock and clean cockpit design
Ride characteristics
- Extremely efficient under power with excellent traction on climbs
- Stable and confident at speed compared to traditional XC race bikes
- Quick handling without feeling nervous on technical terrain
- Ideal for XC racing, marathon events, and fast trail riding
Fit, setup, and recommended upgrades
- We want every rider, local or remote, to get the best performance from their new Spark RC.
- Local pickup customers: We can set suspension sag, rebound, and tire pressures so the bike is tuned correctly for your weight and terrain.
- Shipped bikes: The bike arrives professionally assembled and test ridden. Our staff can help with suspension setup and TwinLoc adjustment before your first ride.
- Recommended upgrades: Many riders choose to add pedals, body protection, or cockpit adjustments (grips, bar width, stem length) to match their riding style.
World Cup EVO TR - Full specifications
Frame
| Frame | Spark RC Carbon HMX, Integrated Suspension Technology, Flex Pivot, adjustable head angle, Syncros Cable Integration System, BB92, UDH interface, 12x148mm with 55mm chainline |
| Warranty | Lifetime frame warranty for the original owner |
Suspension
| Fork | RockShox SID Ultimate RD3 Air, Custom Race Day Charger 3-mode damper, 15x110 Maxle Stealth, 44mm offset, 120mm travel |
| Rear shock | RockShox NUDE 5 RLC3 Trunnion, Scott custom with travel and geometry adjustment, 3 modes (Lockout, Traction Control, Descend), low-speed compression and rebound adjustment, DebonAir, 165x45mm |
| Remote system | Scott TwinLoc 2 Technology for suspension and dropper, 3 suspension modes |
Wheels and tires
| Wheelset | Syncros Silverton 1.0S-30 CL, carbon rims, 30mm internal, tubeless ready, 28h, front 15x110, rear 12x148, DT Swiss 240 Ratchet EXP 36, XD driver, Syncros SL axle with removable lever and tools |
| Front tire | Maxxis Rekon Race, 29x2.4, 120 TPI, tubeless ready, EXO |
| Rear tire | Maxxis Rekon Race, 29x2.4, 120 TPI, tubeless ready, EXO |
Drivetrain
| Shifter | SRAM Eagle AXS Rocker Controller |
| Rear derailleur | SRAM XX SL Eagle AXS Transmission, 12 speed, wireless electronic shift system |
| Crankset | SRAM XX Eagle Transmission carbon crankarms, DUB, 55mm chainline, 32T |
| Bottom bracket | SRAM DUB PF 92 MTB Wide, shell 41x92mm |
| Cassette | SRAM XX SL Eagle XS-1299 Transmission, 10-52 |
| Chain | SRAM CN XX SL Eagle Transmission |
Brakes
| Brakes | Shimano XTR M9100 disc |
| Front rotor | Shimano RT-MT900 Center Lock, 180mm |
| Rear rotor | Shimano RT-MT900 Center Lock, 160mm |
Cockpit
| Handlebar | Syncros Fraser iC SL XC Carbon, -12° rise, 8° backsweep, 740mm |
| Grips | Syncros Performance XC lock-on grips |
| Seatpost | FOX Transfer SL Performance Elite Dropper Post, 31.6mm, S 75mm, M/L/XL 100mm |
| Headset | Syncros - Acros angle adjust and cable routing headset system, stainless, ±0.6° head angle adjustment, ZS56/28.6 – ZS56/40 |
| Saddle | Syncros Belcarra 1.0 Regular with carbon rails |
Extras
| Included | SRAM AXS Powerpack, SRAM TyreWiz, Syncros Eco Sealant, transport axle |
| Approx. weight | 22.93 lbs (tubeless setup) |
Sizing and fit
Height ranges are based on the manufacturer’s recommended sizing chart. If you are between sizes, compare stack and reach to a bike you already like.
| Size | Recommended height (approx.) | Approx. reach |
|---|---|---|
| S | Under 165 cm (under 65 in) | 411 mm |
| M | 165–175 cm (65–69 in) | 441 mm |
| L | 175–185 cm (69–73 in) | 471 mm |
| XL | 185–195 cm (73–77 in) | 501 mm |

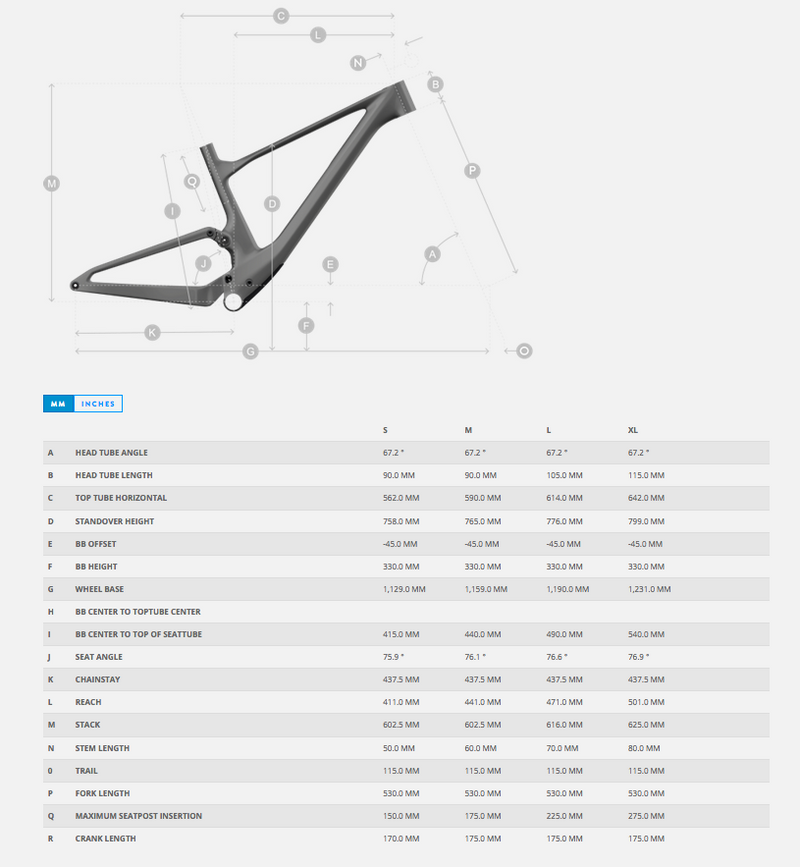

Frame geometry (mm and degrees) Tap to open chart
| S | M | L | XL | |
|---|---|---|---|---|
| Head tube angle | 67.2° | 67.2° | 67.2° | 67.2° |
| Head tube length | 90 | 90 | 105 | 115 |
| Top tube (horizontal) | 562 | 590 | 614 | 642 |
| Standover height | 758 | 765 | 776 | 799 |
| BB offset | -45 | -45 | -45 | -45 |
| BB height | 330 | 330 | 330 | 330 |
| Wheelbase | 1129 | 1159 | 1190 | 1231 |
| BB center to top of seattube | 415 | 440 | 490 | 540 |
| Seat angle | 75.9° | 76.1° | 76.6° | 76.9° |
| Chainstay | 437.5 | 437.5 | 437.5 | 437.5 |
| Reach | 411 | 441 | 471 | 501 |
| Stack | 602.5 | 602.5 | 616 | 625 |
| Stem length | 50 | 60 | 70 | 80 |
| Trail | 115 | 115 | 115 | 115 |
| Fork length | 530 | 530 | 530 | 530 |
| Max seatpost insertion | 150 | 175 | 225 | 275 |
| Crank length | 170 | 175 | 175 | 175 |
