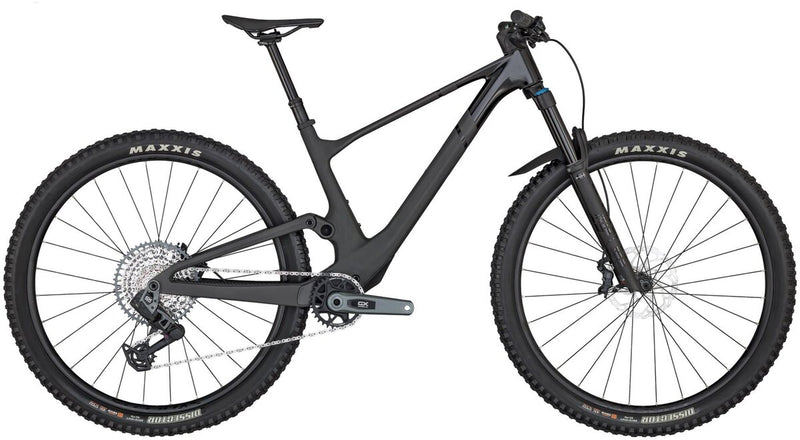

Scott Spark 910 TR. The Spark 910 TR takes the efficiency of the Spark platform and adds suspension and components aimed at riders who want to spend more time descending. With 140mm up front, a FOX Float X NUDE rear shock, and trail focused geometry, this short travel trail bike blends climbing efficiency with confidence when the trail points down.
Key highlights
- Frame: Spark ST Carbon HMF with integrated suspension and adjustable geometry
- Suspension travel: 140mm front, 120mm rear with TracLoc adjustment
- Drivetrain: SRAM GX Eagle AXS Transmission wireless shifting
- Focus: Short travel trail riding with strong climbing efficiency
Suspension and system
- Fork: FOX 34 Float Performance Elite Grip 2, 140mm
- Rear shock: FOX Float X NUDE with piggyback and adjustable travel
- Remote: TracLoc system with three suspension modes
- Integration: Internal routing and hidden shock layout
Ride characteristics
- More composed and stable than traditional XC bikes
- Efficient climber for its travel category
- Confidence inspiring on steeper and rougher trails
- Well suited for Trail Ready riders who want one bike versatility
Fit, setup, and recommended upgrades
- We want every rider, local or remote, to get the best performance from their new Spark 910 TR.
- Local pickup customers: We can dial in suspension sag, rebound, and tire pressures based on your weight and riding terrain.
- Shipped bikes: The bike arrives professionally assembled and test ridden. Our staff can assist with suspension setup and TracLoc operation.
- Recommended upgrades: Many riders choose pedals, tire inserts, or cockpit adjustments to match their riding style and terrain.
Spark 910 TR - Full specifications
Frame
| Frame | Spark ST Carbon HMF, Integrated Suspension Technology, Flex Pivot, adjustable head angle, Syncros Cable Integration System, BB92, UDH, 12x148mm |
| Warranty | Lifetime frame warranty for the original owner |
Suspension
| Fork | FOX 34 Float Performance Elite Grip 2, 140mm travel |
| Rear shock | FOX Float X NUDE Performance Elite EVOL piggyback, TracLoc, adjustable travel and geometry |
Wheels and tires
| Wheelset | Syncros Silverton 2.5 TR, 30mm internal, tubeless ready, 28h |
| Front tire | Maxxis Dissector 29x2.4 WT, EXO, 3C MaxxTerra |
| Rear tire | Maxxis Dissector 29x2.4 WT, EXO, 3C MaxxTerra |
Drivetrain
| Shifter | SRAM GX Eagle AXS Rocker Controller |
| Rear derailleur | SRAM GX Eagle AXS Transmission, 12 speed |
| Crankset | SRAM GX Eagle Transmission DUB, 32T |
| Bottom bracket | SRAM DUB PF92 MTB Wide |
| Cassette | SRAM GX Eagle XS-1275 Transmission, 10-52 |
| Chain | SRAM GX Eagle Transmission |
Brakes
| Brakes | Shimano SLX M7120 4 piston disc |
| Rotors | Shimano SM-RT66, 180mm front and rear |
Cockpit
| Handlebar | Syncros Fraser iC SL DC Carbon, 780mm |
| Seatpost | Syncros Duncan Dropper Post, 31.6mm |
| Headset | Syncros Acros angle adjust and cable routing system |
| Saddle | Syncros Tofino 2.5 Regular |
Sizing and fit
Height ranges are based on the manufacturer’s recommended sizing chart.
| Size | Recommended height (approx.) | Approx. reach |
|---|---|---|
| S | Under 165 cm (under 65 in) | 410 mm |
| M | 165–175 cm (65–69 in) | 440 mm |
| L | 175–185 cm (69–73 in) | 470 mm |
| XL | 185–195 cm (73–77 in) | 500 mm |

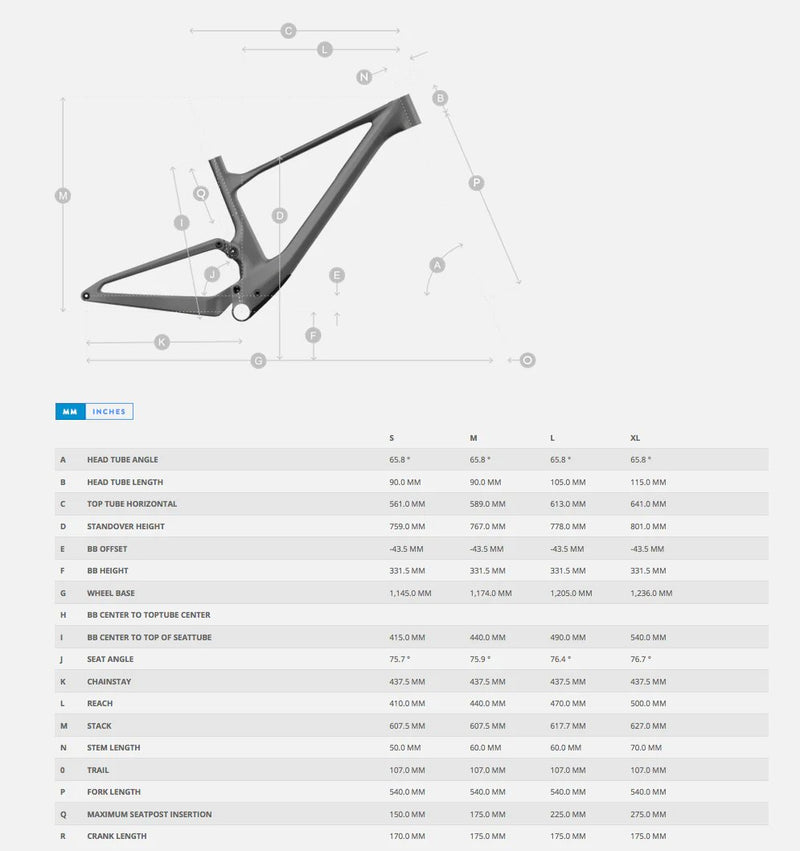

Frame geometry (mm and degrees) Tap to open chart
| S | M | L | XL | |
|---|---|---|---|---|
| Head tube angle | 65.8° | 65.8° | 65.8° | 65.8° |
| Head tube length | 90 | 90 | 105 | 115 |
| Top tube (horizontal) | 561 | 589 | 613 | 641 |
| Standover height | 759 | 767 | 778 | 801 |
| BB offset | -43.5 | -43.5 | -43.5 | -43.5 |
| BB height | 331.5 | 331.5 | 331.5 | 331.5 |
| Wheelbase | 1145 | 1174 | 1205 | 1236 |
| BB center to top of seattube | 415 | 440 | 490 | 540 |
| Seat angle | 75.7° | 75.9° | 76.4° | 76.7° |
| Chainstay | 437.5 | 437.5 | 437.5 | 437.5 |
| Reach | 410 | 440 | 470 | 500 |
| Stack | 607.5 | 607.5 | 617.7 | 627 |
| Stem length | 50 | 60 | 60 | 70 |
| Trail | 107 | 107 | 107 | 107 |
| Fork length | 540 | 540 | 540 | 540 |
| Max seatpost insertion | 150 | 175 | 225 | 275 |
| Crank length | 170 | 175 | 175 | 175 |
