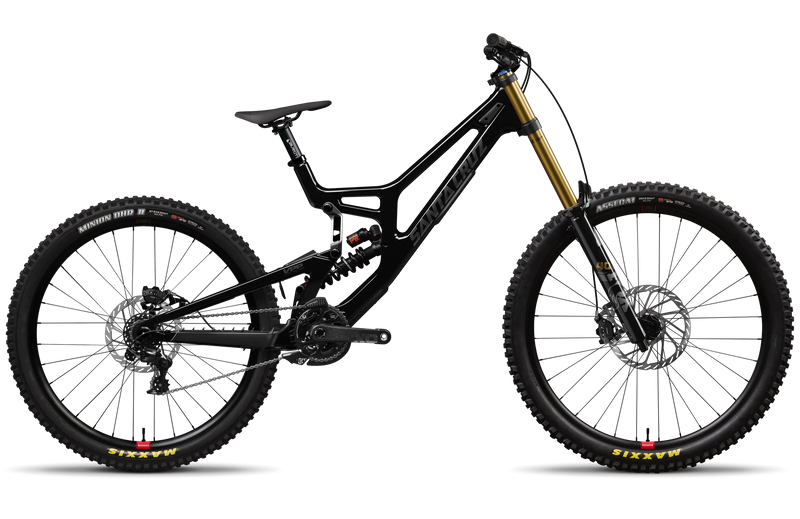

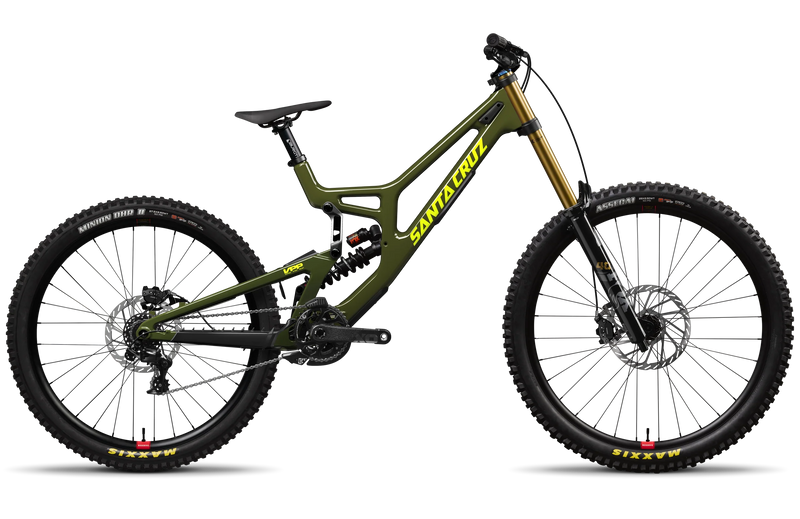

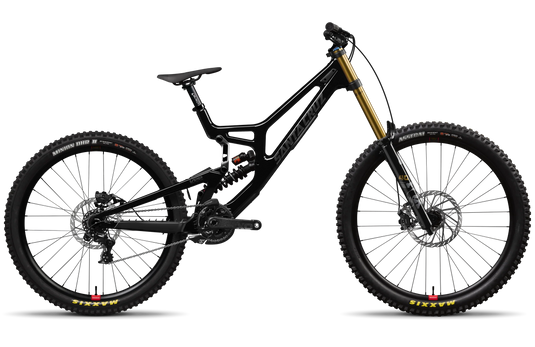

Santa Cruz V10 Carbon CC X01 DH (2025)
Built for downhill racing and bike-park laps, the Santa Cruz V10 is a dedicated DH race machine with VPP™ suspension, 203mm front / 208mm rear travel, and an MX wheel setup (29" front / 27.5" rear). Fully refined, not redefined, it delivers the speed, control, and durability riders need for steep, technical tracks, braking bumps, and repeated high-impact riding.
Key highlights
-
203mm / 208mm travel built specifically for steep, high-speed downhill terrain.
-
Adjustable geometry (High / Mid / Low) to fine-tune stability, cornering, and ground clearance by track.
-
MX wheel configuration (29" front / 27.5" rear) for rollover confidence up front and quicker direction changes out back.
-
SRAM X01 DH 7-speed drivetrain designed for downhill durability and reliable shifting under load.
Design and durability
- Carbon CC frame engineered for downhill racing and repeated high-impact riding.
- VPP™ suspension platform optimized for sensitivity, support, and long-term serviceability.
- Reach adjust headset cups allow fit and handling tuning: -8mm / 0 / +8mm.
- Santa Cruz legendary support including a lifetime frame warranty and free bearing replacement for the original owner.
Ride characteristics
- Stable and composed at speed with predictable handling on technical downhill tracks.
- Designed with the geometry and handling priorities of a true downhill race bike.
- Tunable fit and geometry help match handling to terrain and riding style.
- Built for sustained downhill riding, from World Cup tracks to bike park laps.
Fit, setup, and recommended upgrades
- We want every rider to get the most out of their new V10.
-
Local pickup customers: We can help dial in suspension sag, rebound, and cockpit setup before your first ride.
-
Shipped bikes: Bikes arrive professionally assembled and test ridden. Our staff can assist with setup questions if needed.
-
Recommended upgrades: Many riders choose pedals, additional protection, spare brake pads, and tire inserts to match local tracks and riding style.
Santa Cruz V10 Carbon CC X01 DH (2025) – Full specifications
Frame
| Frame |
Carbon CC MX 208mm Travel VPP™ |
| Weight |
35.6 lbs / 16.15 kg |
| Wheel size |
MX/29" |
Suspension
| Fork |
FOX 40 Float Factory, Grip X2, 203mm |
| Rear shock |
Fox DHX2 Factory Coil |
Wheels & tires
| Front rim |
Reserve 30|HD AL 6069 or Raceface ARC 30 HD |
| Rear rim |
Reserve 30|HD AL 6069 or Raceface ARC 30 HD |
| Front hub |
Industry Nine 1/1, 20x110 Boost, 32h |
| Rear hub |
Industry Nine 1/1, 12x157, XD, 32h |
| Tires |
Front: Maxxis Minion DHR II 29"x2.5", 3C MaxxGrip, DH or Maxxis Assegai 29"x2.5", 3C MaxxGrip, DH
Rear: Maxxis Minion DHR II 27.5"x2.5", 3C MaxxGrip, DH |
Drivetrain
| Shifter |
SRAM X01 DH (right shifter) |
| Rear derailleur |
SRAM X01 DH, 7spd |
| Crankset |
SRAM X01 DH, DUB 83, 165mm, 36t |
| Bottom bracket |
SRAM DUB 83mm Threaded BB |
| Cassette |
SRAM X01 DH, 7spd |
| Chain |
SRAM PC1170, 11spd |
| Chainguide |
E13 LG1+ Chainguide |
Brakes
| Brakes |
SRAM Maven Silver |
| Rotors |
Front: SRAM HS2 220mm
Rear: SRAM HS2 200mm |
Cockpit
| Handlebar |
OneUp Aluminum Bar |
| Stem |
OneUp Direct Mount Stem |
| Seatpost |
Burgtec Aluminum Post, 31.6 |
| Saddle |
Fizik Alpaca Gravita X5 Saddle |
| Grips |
Burgtec Bartender Pro Grip |
| Headset |
Cane Creek 50 IS41 Headset 1-1/8" |
Sizing and fit
Height ranges are based on Santa Cruz’s recommended sizing chart.
| Frame size |
Recommended height |
Reach range (short/mid/long) |
Stack |
| Small |
5'1" – 5'6" |
412 / 420 / 428 mm |
624 mm |
| Medium |
5'5" – 5'9" |
447 / 455 / 463 mm |
633 mm |
| Large |
5'8" – 6'1" |
467 / 475 / 483 mm |
637 mm |
| X-Large (29) |
6'0" – 6'5" |
492 / 500 / 508 mm |
642 mm |
- If you’re between sizes, compare your current bike’s stack/reach to these numbers.
- Riders who want more stability often choose the larger of two possible sizes.
- Riders with longer legs and a shorter torso may prefer the smaller size in the range.
Frame geometry (Low / Mid / High settings) Tap to open chart
| Size |
Wheels |
Setting |
Reach |
Stack |
Head tube angle |
Seat tube length |
Front center |
BB height |
BB drop (F/R) |
Wheelbase |
Rear center |
Head tube length |
Seat tube angle |
Standover height |
| S |
MX |
High |
412-420-428 |
624 |
63 |
435 |
785 |
356 |
17/-1 |
1230 |
440-445-450 |
100 |
77.9 |
729 |
| S |
MX |
Mid |
411-419-427 |
625 |
62.9 |
435 |
785 |
353 |
19/-1 |
1231 |
440-445-452 |
100 |
77.8 |
726 |
| S |
MX |
Low |
409-417-425 |
626 |
62.7 |
435 |
785 |
351 |
21/3 |
1231 |
440-445-452 |
100 |
77.6 |
724 |
| M |
MX |
High |
447-455-463 |
633 |
63 |
445 |
825 |
356 |
17/-7 |
1275 |
445-450-455 |
110 |
77.4 |
730 |
| M |
MX |
Mid |
446-454-462 |
634 |
62.9 |
445 |
825 |
353 |
19/1 |
1275 |
445-450-455 |
110 |
77.3 |
728 |
| M |
MX |
Low |
444-452-460 |
625 |
62.7 |
445 |
825 |
351 |
21/3 |
1276 |
445-450-455 |
110 |
77.1 |
726 |
| L |
MX |
High |
467-475-483 |
637 |
63 |
455 |
847 |
356 |
17/-1 |
1302 |
450-455-460 |
115 |
77.3 |
731 |
| L |
MX |
Mid |
466-474-482 |
638 |
62.9 |
455 |
847 |
353 |
19/1 |
1303 |
451-456-461 |
115 |
77.2 |
729 |
| L |
MX |
Low |
464-472-480 |
639 |
62.7 |
455 |
847 |
351 |
21/3 |
1303 |
451-456-461 |
115 |
77 |
726 |
| XL |
29 |
High |
492-500-508 |
642 |
63 |
465 |
874 |
356 |
17/17 |
1334 |
455-460-465 |
120 |
77 |
731 |
| XL |
29 |
Mid |
491-499-507 |
643 |
62.9 |
465 |
874 |
353 |
19/19 |
1335 |
456-461-466 |
120 |
76.9 |
729 |
| XL |
29 |
Low |
491-499-507 |
644 |
62.7 |
465 |
874 |
351 |
21/21 |
1335 |
456-461-466 |
120 |
76.7 |
726 |
Component note: We reserve the right to make changes to product and component information at any time without notice, including equipment, specifications, models, colors, and materials.
