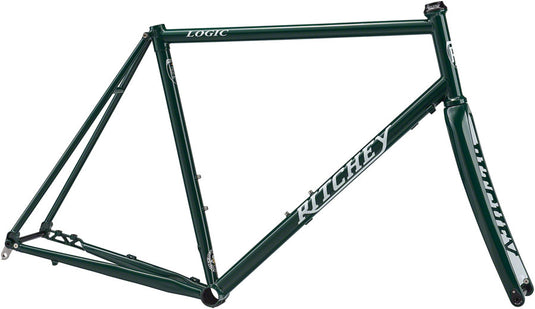

Ritchey Road Logic Disc Frameset - 700c, Steel, Green

The Ritchey Road Logic Disc frame is built with a heat-treated and triple-butted Ritchey Logic tubeset designed specifically for the Road Logic. It features aggressively short-butted sections optimized for TIG weldingthat save weight and improve ride quality. The frameset also includes a Ritchey WCS Carbon Road Fork for precise handling and responsiveness. Road Logic Disc frame is now compatibility with Shimano’s newest Di2 semi-wireless 12-speed groupsets. A new drive side dropout design allows for concealed wire routing from the battery in the seat tube through the bottom bracket area into the chainstay where it makes a stealthy exit to the rear derailleur.

Flat-mount brake compatibility

Thru-axles in front and rear

Stealth wire routing for semi-wireless Di2 groupsets

Ritchey WCS Full Carbon Fork

700x30c tire clearance (depending on tire/rim manufacturer)

Headset: WCS drop in 1-1/8” (included)

Frame Weight: 1.84 kg (55cm w/ thru-axle)

Fork Weight: 440g (uncut w/ thru-axle)

Rear Axle	12mm Thru x 142mm
Brake Type	Disc
TT (Effective)	532, 548, 563, 575, 590
Fork Type	Rigid
Fork Material	Carbon
Frame Material	Steel
Front Axle	12mm Thru x 100mm
Color	Nigiri
Mfg Size	51, 53, 55, 57, 59
Platform	Road Logic
Wheel Size	700c
Defined Color	Green
