- TTX2 refers to two air chambers meaning greater air volume. Provides a more linear spring rate
- Trunnion mount: the linkage bolts directly to the sides of the cylinder head
- TTX Twin tube design for consistent damping performance on all types of terrain
- Extra bushing overlap for improved side load management
- Specific wiper seal and air sleeve lubrication reduce friction
- External rebound, low-speed and high-speed compression adjustment
- Climb mode to reduce suspension movements during climbs
- Includes (2) air spring volume spacers to reduce travel -2.5mm or -5mm
- Mounting hardware sold separately (spherical bearings reduce friction on the shock during side loads for improved small bump sensitivity, optional on widths up to 22mm)

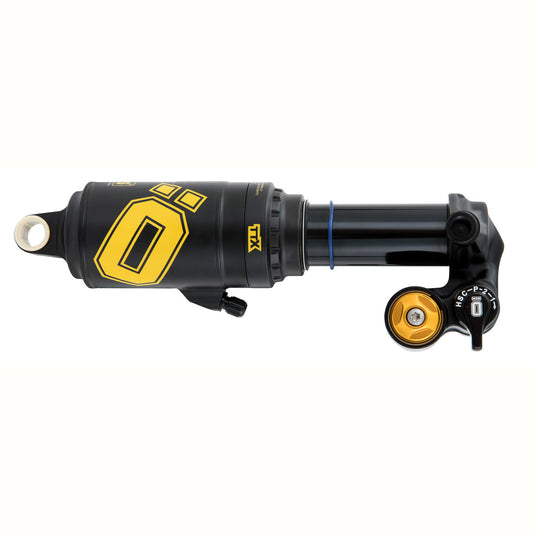

| Model | TTX2 Air Trunnion |
| Stroke | 40/42.5/45mm, 60/62.5/65mm |
| Eye | Eye-165mm, Eye-205mm |
