- TTX1 refers to a single air chamber for less air volume. Offers a more progressive spring rate
- Trunnion mount: the linkage bolts directly to the sides of the cylinder head
- TTX Twin tube design for consistent damping performance on all types of terrain
- Extra bushing overlap for improved side load management
- Specific wiper seal and air sleeve lubrication reduce friction
- External rebound, low-speed, and high-speed compression adjustment
- Climb mode to reduce suspension movements during climbs
- Includes (2) air spring volume spacers to reduce travel -2.5mm or -5mm
- Mounting hardware sold separately (spherical bearings reduce friction on the shock during side loads for improved small bump sensitivity, optional on widths up to 22mm)

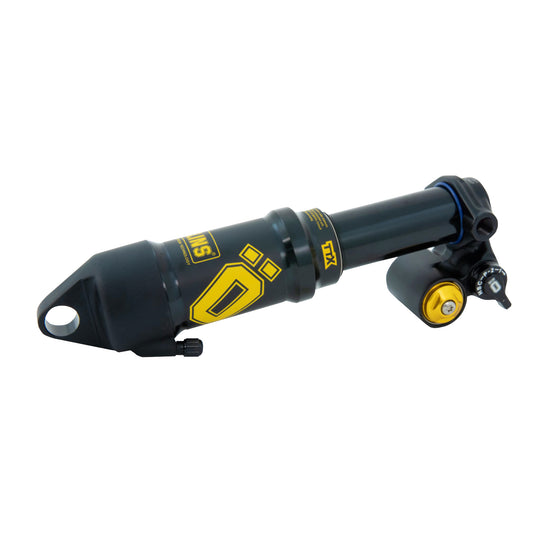

| Model | TTX1 Air Trunnion |
| Stroke | 45mm, 55mm |
| Eye | Eye-165mm, Eye-185mm |
