2026 Revolver C2 120
Revolver C2 120 sets the bar for what a Cross-Country bike can do. With 120 mm of front travel and 115 mm at the rear, it's fast, efficient, and capable.
Quick and snappy on acceleration, whether you're going up or ready to rip down, its suspension performance is well beyond what you can expect from a shorter travel bike. Head out for epic days, attack climbs, and crush descents, while cruising through the singletrack; it's the best choice for stage races or all-day adventures.
Efficient where it counts, aggressive where it matters.

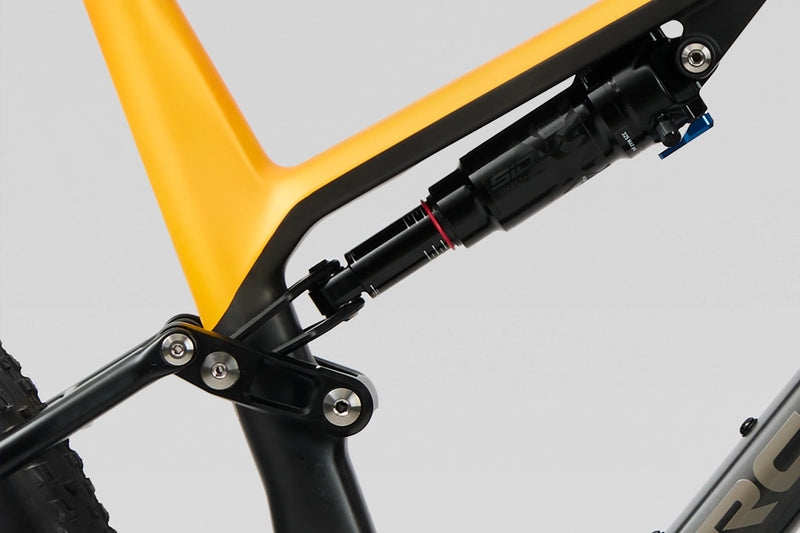

The Revolver C2 120 is the lightest and most capable full-suspension frame Norco has ever built. At the core of its efficiency is our advanced approach to the Flex-Pivot design, letting us get improved performance out of the lightweight inline shocks we’re spec'ing that would typically be reserved for heavier and larger volume air shocks. With modern, aggressive XC geometry, consistant weight distribution across sizes, and a carbon frame layup optimized per frame size for stiffness and compliance, it’s a strong foundation for driving up and charging down.
Specifications
| 1 | 2 | 3 | 4 | 5 | ||
| Wheel Size | 29" | 29" | 29" | 29" | 29" | |
| Travel (mm front/mm rear) | 120/115 | 120/115 | 120/115 | 120/115 | 120/115 | |
| Reach | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 | |
| Stack | 589 | 598 | 607 | 616 | 625 | |
| HTA | Head Tube Angle | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| OS | Fork Offset | 44 | 44 | 44 | 44 | 44 |
| ST | Seat Tube Length | 392 | 434 | 453 | 477 | 491 |
| STA | Effective Seat Tube Angle | 75 | 75.25 | 75.5 | 75.75 | 76 |
| RC | Rear Centre Length | 422 | 426 | 430 | 434 | 438 |
| BBDF/R | Bottom Bracket Drop (Front/Rear) | 36/36 | 36/36 | 36/36 | 36/36 | 36/36 |
| BBH | Bottom Bracket Height | 338 | 338 | 338 | 338 | 338 |
| HTT | Horizontal Top Tube | 580 | 605 | 629 | 654 | 678 |
| WB | Wheelbase | 1131 | 1164 | 1197 | 1230 | 1263 |
| SOH | Standover | 677 | 681 | 685 | 692 | 698 |
| HT | Head Tube Length | 90 | 100 | 110 | 120 | 130 |
| Trail | 115 | 115 | 115 | 115 | 115 | |
| Recommended Seatpost Drop | 120 | 120 | 150 | 170 | 200 | |
| Maximum Post Insertion | 220 | 220 | 250 | 270 | 300 | |
| Stem Length | 50 | 50 | 50 | 50 | 50 | |
| Crank Length | 165 | 170 | 170 | 175 | 175 | |
| Tire Size | 2.35" – 2.5" | 2.35" – 2.5" | 2.35" – 2.5" | 2.35" – 2.5" | 2.35" – 2.5" | |
| Water Bottle Compatible | 1 x 750 mL | 2 x 620mL or 1 x 750 mL | 2 x 620mL or 1 x 750 mL | 2 x 750 mL | 2 x 750 mL |
