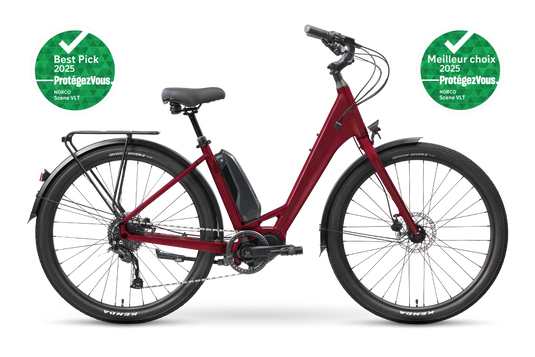

Norco Scene VLT. An award-winning, relaxed step-thru electric hybrid that turns steep city hills and daily errands into easy, sweat-free rides while still feeling like a regular pedal bike.
Key highlights
- Award-winning city e-bike Winner of ProtégezVous Magazine’s Consumer Choice award for comfort and practicality.
- Easy step-thru frame Sleek, custom-formed aluminum frame with a low standover and upright position for confident starts and stops.
- Streamlined cockpit Compact display, intuitive gear shifter, integrated lighting, and automatic dropper post keep controls simple and tidy.
- Comfort and control High-volume 27.5" tires and hydraulic disc brakes add grip and stopping power in all weather.
Shimano STEPS system
- Shimano DU-EP600 drive unit Nearly silent, full-power mid-drive motor with up to 85 Nm of torque for effortless hill climbing.
- Shimano BT-EN605 504 Wh battery Generous capacity for daily commutes, errands, and weekend cruises without range anxiety.
- Smart electronics SC-EN500 display and EW-SS300 speed sensor show mode, speed, and range while keeping the bar clean.
- Easy charging External Shimano EC-E6002 charger makes topping up the battery simple at home or at the office.
Ride characteristics
- Relaxed, upright position with swept-back bar keeps weight off your hands, neck, and back on longer city rides.
- Low step-thru frame and automatic dropper post make stop-and-go traffic, lights, and loading panniers easy and stress-free.
- High-volume 27.5" tires smooth out rough pavement, expansion joints, and light gravel paths around town.
- Hydraulic disc brakes give confident, predictable stopping power even on wet or steep urban descents.
Fit, setup, and recommended upgrades
- We want every rider, local or remote, to get the best performance from their new Scene VLT.
- Local pickup customers: We can set saddle height, bar position, and tire pressures so the bike is tuned correctly for your height and local terrain.
- Shipped bikes: The bike arrives professionally assembled and test ridden. If you need help with cockpit or saddle setup at home, our staff can walk you through the basics or answer questions before your first ride.
- Recommended upgrades: Many riders choose to add pedals, city accessories (rack, panniers, fenders), or cockpit adjustments (grips, bar width, stem length) to match their riding style. If you would like suggestions, we can help you choose options that complement the bike’s geometry and intended use.
Scene VLT – Full specifications
Frame
| Frame | Double butted alloy e-bike frame with internal cable routing and step-thru design. |
| Warranty | No Other Way Limited Lifetime warranty for the original owner. |
Fork
| Fork | Aluminum fork with light mount, 12x100mm thru-axle, post-mount disc. |
| Rear shock | Not applicable – rigid frame and fork for efficient city riding. |
Wheels and tires
| Rims | Alloy double-wall disc rims with 27mm internal width, 32h. |
| Hubs | Front: Formula DC-221T, 15x100mm TA, 32h, 6-bolt · Rear: Formula DC-142, 12x142mm Boost, HG, 32h, 6-bolt. |
| Spokes | 13G stainless steel spokes with brass nipples (2.0mm x 16mm), black. |
| Tires | Kenda Kwick Seven5 27.5 x 2.2", 30 TPI, wire bead, front and rear. |
Drivetrain
| Rear shifter | Shimano CUES SL-U4000-9R, 9-speed. |
| Rear derailleur | Shimano CUES RD-U4020, 9-speed, SGS cage. |
| Crankset | Shimano FC-EM600, 38T chainring, 165mm crank arms. |
| Bottom bracket | Integrated with Shimano STEPS mid-drive motor. |
| Cassette | Shimano CUES CS-LG300-9, 11–36T, 9-speed. |
| Chain | KMC eGlide, 9-speed. |
Brakes
| Front brake | Tektro HD-M280 Auriga hydraulic disc, 2-piston, resin pads, anti-vibration. |
| Front rotor | Tektro TR160-52, 160mm diameter, 1.8mm thickness, 6-bolt. |
| Rear brake | Tektro HD-M280 Auriga hydraulic disc, 2-piston, resin pads, anti-vibration. |
| Rear rotor | Tektro TR160-52, 160mm diameter, 1.8mm thickness, 6-bolt. |
| Brake levers | Tektro HD-M280 Auriga levers. |
Cockpit
| Handlebar | Norco Scene aluminum handlebar, 660mm width, 60mm rise, 30° backsweep. |
| Stem | Norco aluminum stem, 70mm (S/M) – 80mm (M/L), 17° rise, 31.8mm clamp. |
| Seatpost | TranzX YSP18PLQ dropper post, 31.6mm, 100mm travel. |
| Headset | Tapered 1-1/8" – 1.5" headset (ZS44/28.6 | ZS56/40). |
| Saddle | Scene Comfort saddle with elastomer suspension, 225mm W x 269mm L. |
| Grips | Dual-density ergonomic single-lock-on grips, 133mm length. |
Motor and battery
| Drive unit | Shimano DU-EP600 mid-drive motor, 85 Nm. |
| Battery | Shimano BT-EN605 504 Wh battery with external Shimano EC-E6002 1.8A charger, plus Shimano SC-EN500 display and EW-SS300 speed sensor. |
Sizing and fit
Height ranges are based on the manufacturer’s recommended sizing chart. If you are between sizes, compare stack and reach to a bike you already like.
| Size | Recommended height (approx.) | Approx. reach |
|---|---|---|
| Small | 5'1" – 5'6" | 355 mm |
| Medium | 5'5" – 5'10" | 365 mm |
| Large | 5'9" – 6'2" | 375 mm |
- Riders who want more stability often choose the larger of two possible sizes.
- Riders with longer legs and shorter torsos may prefer the smaller size in the range.
- If you are unsure, contact us with your height, inseam, and current bike for a sizing check.
Frame geometry (mm and degrees) Tap to open chart
| S | M | L | ||
|---|---|---|---|---|
| Wheel size | 27.5" | 27.5" | 27.5" | |
| Reach | 355 | 365 | 375 | |
| Stack | 593 | 621 | 649 | |
| Head tube angle | 68° | 68° | 68° | |
| Fork offset | 50 | 50 | 50 | |
| Seat tube length | 425 | 450 | 475 | |
| Effective seat tube angle | 68° | 68° | 68° | |
| Rear centre length | 470 | 470 | 470 | |
| BB drop | 67 | 67 | 67 | |
| BB height | 285 | 285 | 285 | |
| Top tube length (horizontal) | 595 | 616 | 637 | |
| Wheelbase | 1087 | 1108 | 1129 | |
| Standover height | 415 | 415 | 415 | |
| Head tube length | 170 | 200 | 230 | |
| Trail | 88 | 88 | 88 | |
| Recommended seatpost drop | 100 | 120 | 120 | |
| Maximum post insertion | 250 | 300 | ||
| Stem length | 70 | 70 | 70 | |
| Crank length | 170 | 170 | 170 | |
| Tire size | 2.0" – 2.35" | 2.0" – 2.35" | 2.0" – 2.35" | |
| Water bottle compatible | 1 × 750 mL | 1 × 750 mL | 1 × 750 mL |
