Introducing the Exie for all. Sharing the same geometry and performance as the World Cup winning Exie USA, our newest offering is handbuilt in Vietnam. It’s everything we love about our US made offering (albeit ~250g heavier) in a wallet-friendly build.
Whether you’re racing short track or on a multi day epic, the Exie’s seat tube angles allows you to harness your strongest muscles, while reducing any potential knee or wrist strain. We’ve also steepened the seat tube angles as the frames get larger, to allow riders with different inseams to achieve the same riding positions.
Don’t squander a single watt. Our dw-link suspension platform offers incredible climbing efficiency and traction along with plush, downhill-crushing goodness.
We use bushings where it makes sense and bearings where it doesn’t. The IGUS bushings in our lower link are lighter, stiffer, and virtually maintenance free. We’ve also added features like a threaded bottom bracket to help make any future maintenance easy.

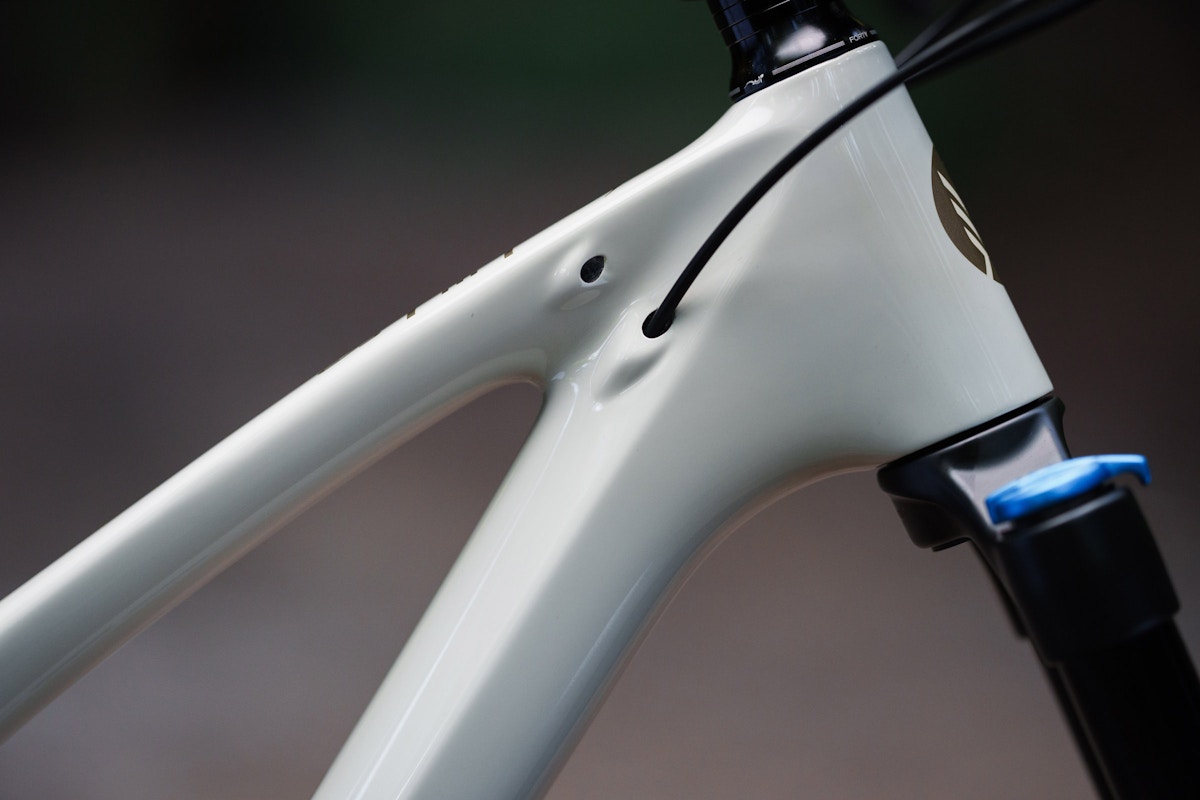

Internal cable routing doesn’t have to be a pain. We’ve added internal tubes to our tubes, no picksets, flashlights, or swear words required.
You can run overbuilt, chunky tires; you can run light, big volume fast tires, but whatever you run, you’re not limited by width.
The Exie has clearance for two water bottles inside the front triangle on every size frame.
Drop the hammer, not your chain.
| Component | Standard Component | |
|---|---|---|
| Fork | Fox Float 34 Performance Series, Step-Cast, Grip, 120mm, 29’, 110x15 | |
| Shock | Fox Performance Series Float DPS with EVOL, 190mm x 45mm | |
| Wheels | Ibis 933 Aluminum Rims, Ibis Hubs | |
| Tires | Maxxis Recon Race 29" x 2.4" Exo/TR WT | |
| Brakes | Shimano SLX M7100 | |
| Brake Rotors | Shimano SM-RT66 180/160 | |
| Cranks | Shimano SLX M7120 24mm spindle, 30t Alloy Ring
S/M: 170mm, L/XL: 175mm |
|
| Bottom Bracket | Shimano SLX BB52 | |
| Rear Derailleur | Shimano SLX M7100 Shadow Plus | |
| Shift Levers | Shimano SLX M7100 | |
| Cassette | Shimano SLX, 10-51T | |
| Chain | Shimano SLX M7100 | |
| Chain Guide | Ibis Top Guide | |
| Headset | Cane Creek 40: IS 41/28.6 upper, IS 52/40 lower | |
| Grips | Lizard Skin Charger Evo | |
| Handlebar | Ibis Aluminum, 780mm | |
| Stem | Ibis 31.8mm
S/M: 40mm, L/XL: 50mm |
|
| Seatpost | Bike Yoke Revive Dropper
S: 125mm, M: 160mm, L: 185mm, XL/XXL: 213mm. Note there is a 250lb rider weight limit on this post. |
|
| Saddle | WTB Silverado |
|

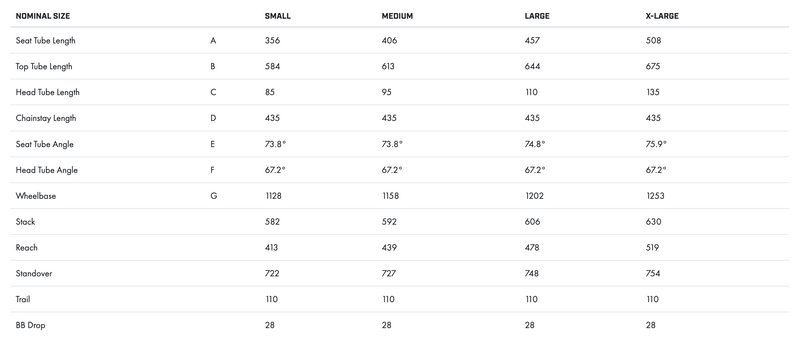

| NOMINAL SIZE | SMALL | MEDIUM | LARGE | X-LARGE | |
|---|---|---|---|---|---|
| Seat Tube Length | A | 356 | 406 | 457 | 508 |
| Top Tube Length | B | 584 | 613 | 644 | 675 |
| Head Tube Length | C | 85 | 95 | 110 | 135 |
| Chainstay Length | D | 435 | 435 | 435 | 435 |
| Seat Tube Angle | E | 73.8° | 73.8° | 74.8° | 75.9° |
| Head Tube Angle | F | 67.2° | 67.2° | 67.2° | 67.2° |
| Wheelbase | G | 1128 | 1158 | 1202 | 1253 |
| Stack | 582 | 592 | 606 | 630 | |
| Reach | 413 | 439 | 478 | 519 | |
| Standover | 722 | 727 | 748 | 754 | |
| Trail | 110 | 110 | 110 | 110 | |
| BB Drop | 28 | 28 | 28 | 28 |
