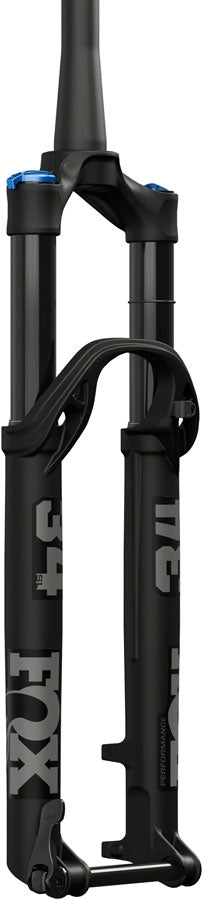

XC courses are more technical than ever with the latest longer-travel XC bikes more than capable. With a stout full-width stance increased travel and tire clearance and svelte sub-1500g weight the new 34 SL Performance suspension fork is built to exceed the demands of modern XC and downcountry.
Full-width 34mm chassis with aggressive generative design-aided arch and crown for 17% increase in stiffness and 10mm increase in travel over 34 SC at only 3% weight increase20mm increased bushing overlap for reduced friction and greater stiffness with no increase in axle-to-crown length (compared to 34 SC)Longer air spring than 34 SC with larger negative volume mirrors 34 LT’s supple initial stroke and 34 SC’s supportive mid and end strokeDouble-butted damper side stanchion for weight savingsLower Leg Bypass Channels relocated 90° inboard for improved bushing loading and reduced dynamic friction
| Steerer Type |
Tapered |
| Lockout Switch |
Crown |
| Brake Type |
Post Mount 180 |
| Negative Spring |
Air |
| Travel (mm) |
120 |
| Offset |
44 |
| Axle to Crown Length |
540.5 |
| Front Axle |
15mm Thru x 110mm |
| Maximum Tire Width |
63.5 |
| S.H.I.S. Stem Clamp Diameter |
28.6 |
| Color |
Matte Black |
| Crown Race |
40 |
| Wheel Size |
29" |
| External Adjustments |
Rebound Damping |
| Defined Color |
Black |
| Positive Spring |
Air |
| keyword search |
FOX Model Year 26 , FOX MY26 |
| Stanchion Diameter |
34 |
