- A new 36mm chassis to deliver exceptional control
- The SL Super-Light Air system offers small bump sensitivity, mid-stroke support, and bottom out resistance at a lower weight than the previous OTT
- The D1 damper features updated high-flow compression and rebound porting to allow a linear suspension dynamic. This initial damping support without any high-speed harshness paired with a 22% increased volume in the Compression Bladder System results in increased small bump sensitivity and damping consistency
- High flow linear rebound update increases response without a loss of control or damping
- A purpose-built crown increases drop for extra downtube clearance and features strategically varied wall-thickness for improved stiffness and strength

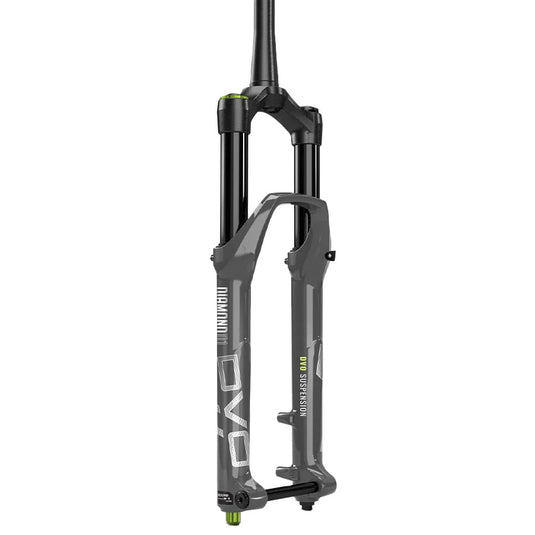

| Model | Diamond 36 D1 SL |
| Wheel Size | 29" |
| Steerer (Stem/Race) | Tapered (28.6/40mm) |
| Offset | 44mm |
| Travel | 160mm |
| Spring Type | Air |
| Brake Mount | Disc Only (PM-180) |
| Dropout | 15x110mm Boost |
| Weight | 2200g |
| Color | Gray |
