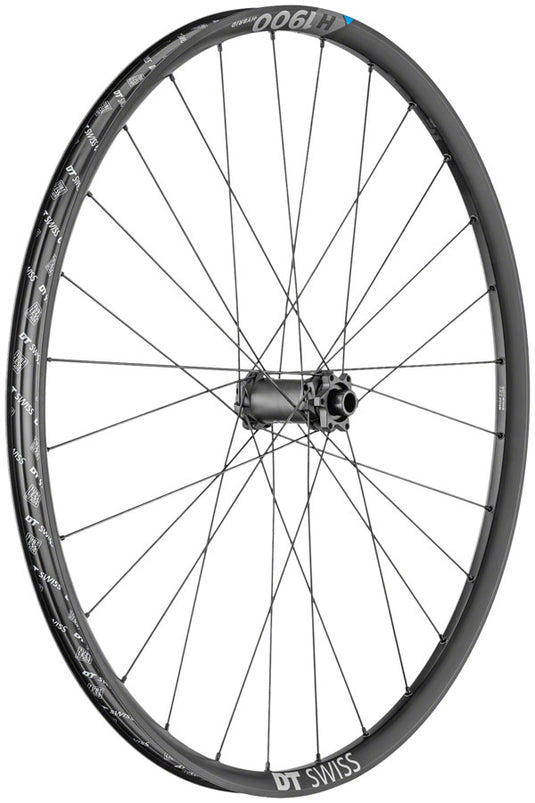

When motor assistance and leg power meet the range of terrain a bike can conquer grows almost exponentially. The H 1900 SPLINE is designed for this now upgraded with the famous DT Swiss Ratchet technology. The Ratchet LN system distributes the combined forces from the rider and the motor over a larger area than the previous pawl freehub systems increasing the systemsâ durability thanks to lower load peaks. The 370 hub enables full power transmission to the ground with reinforced hybrid spokes laced to a resistant aluminum rim available in two inner widths.
Aluminum rim Hooked / Crotchet tubeless readyDT Hybrid 1 spokes are reinforced and increase the lateral and torsional stiffness of the wheel370 HubIncludes Tubeless Valve and Tape 6-bolt adapter with lockring
| Rim Width (Internal) |
30 |
| Front Axle |
15mm Thru x 110mm |
| Valve |
Presta |
| Color |
Black |
| Wheel Size |
27.5", 29" |
| Designed for ebike |
Yes |
| Defined Color |
Black |
| ISO Diameter |
584 / 650b / 27.5", 622 / Road / 29" |
| keyword search |
electric bikes, electric bicycle, e-bike, e-bikes |
| Tire Type |
Tubeless Ready Clincher |
| Rim Material |
Alloy |
| Hub/Brake Compatibility |
6-Bolt Disc |
