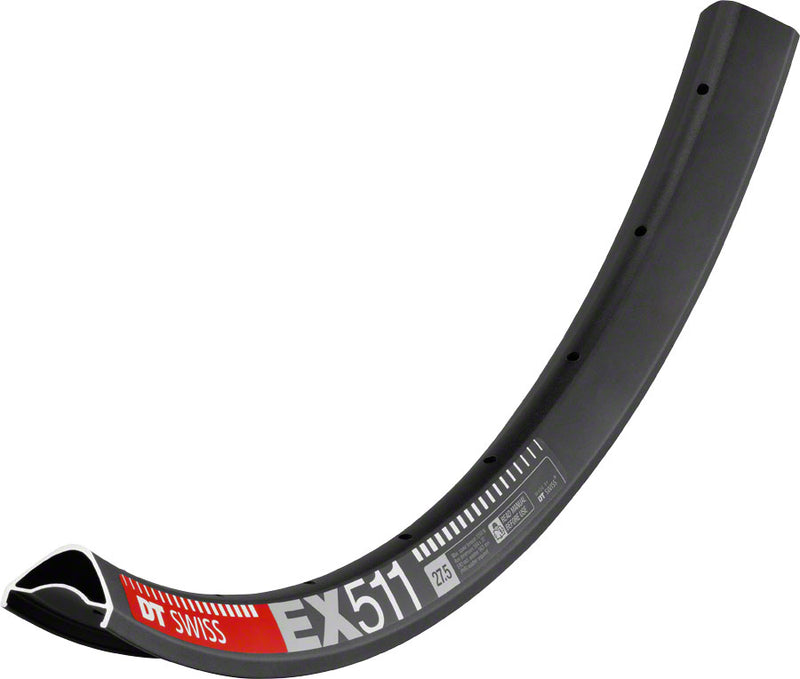

The EX 511 rim was designed to meet the needs of riders that want to ride burlier terrain faster and faster. It comes with all the technology that has delivered many EWS wins and packs it in a 30 mm wide profile.
2.0 silver alloy Prolock Squorx Pro Head nipples and PHR washers includedThe wheel must be built with the supplied PHR washers and Pro Head nipples. The PHR washer must be positioned between the nipple and rim and fit correctly within the radius of the rim. DT Swiss recommends that the contact area between the nipple and PHR washer is greasedERD and weights shown include PHR washersIntended use is All Mountain Enduro and Freeride/Downhill
| Brake Compatibility |
Disc Only |
| Rim Width (Internal) |
30 |
| Brake Track |
None |
| Manufacturer Spec ERD (mm) |
563, 601 |
| Valve |
Presta |
| Color |
Black |
| Weight |
550, 590 |
| Wheel Size |
27.5", 29" |
| Defined Color |
Black |
| ISO Diameter |
584 / 650b / 27.5", 622 / Road / 29" |
| Hub Drilling |
28, 32 |
| Rim Material |
Alloy |
| Tire Type |
Tubeless Ready |
| Rim Center Offset (mm) |
0 |
