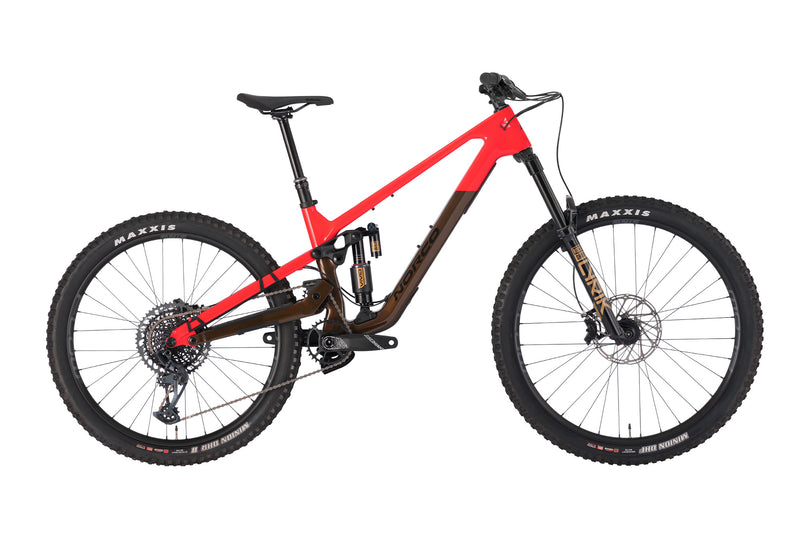

Norco Sight C2 MX (2024). The Sight is up for whatever ride you can conjure and will deliver the goods reliably and without fanfare. But don’t mistake that for not being up for a little mayhem. Norco’s legendary 160mm/150mm All-Mountain machine is the wingman you’ve always wished for, engineered with the self-confidence it takes to shine the spotlight directly on you and give you the time of your life on every ride.
Key highlights
- Suspension: 160mm front / 150mm rear travel
- Platform: VPS HP (High Pivot Horst Link) with idler for control in rough terrain
- Wheels: MX setup (29" front / 27.5" rear) for rollover plus agility
- Fit system: Ride Aligned™ geometry and setup guidance
- Braking: 4-piston brakes with 200/180mm rotors
Ride intent
- All-Mountain bike that leans toward enduro capability
- Stable at speed with a planted, composed feel through rough sections
- Pedals efficiently for an all-day mission bike
- Built for steep, technical descents and chunky trails where momentum matters
Why it feels different
- Terrain-Tailored Suspension: rearward axle path helps absorb square-edge hits and maintain momentum
- Balanced Pedaling: dynamic idler positioning tunes anti-squat for efficiency and traction
- Ride Aligned™: rider-first fit and personalized setup guidance so the bike can be dialed quickly
- MX wheels: confident rollover up front with a quicker, more maneuverable rear end
Fit, setup, and recommended upgrades
- We want every rider, local or remote, to get the best performance from their new Sight.
- Local pickup customers: We can set suspension sag, rebound, and tire pressures so the bike is tuned correctly for your weight and local terrain.
- Shipped bikes: The bike arrives professionally assembled and test ridden. If you need help with suspension or cockpit setup at home, our staff can walk you through the basics or answer questions before your first ride.
- Recommended upgrades: Most riders add pedals and dial in cockpit fit. Protection and setup items that pair well with the Sight include a tubeless sealant refresh, tire inserts (depending on terrain), and frame protection. If you want suggestions, we can recommend options based on how and where you ride.
Sight C2 MX (2024) - Full specifications
Frame
| Frame | Sight Carbon, VPS HP, 150mm travel, UDH compatible |
| Suspension platform | VPSHP (Virtual Pivot Suspension | High Pivot) with idler |
Suspension
| Fork | RockShox Lyrik Ultimate, Charger 3, 160mm, 44mm offset, fender included |
| Rear shock | RockShox Vivid Ultimate Air, 205x60 Trunnion |
Wheels and tires
| Rims | Stan's Flow S2, Black, 32H, 29"/27.5" (MX) |
| Front hub | Sealed bearing, 15x110mm Boost, 6-bolt |
| Rear hub | Race Face Trace, 12x148mm Boost, XD, 6-bolt |
| Front tire | Maxxis Minion DHF 2.5", 3C MaxxTerra, EXO+, TR, folding |
| Rear tire | Maxxis Minion DHR II 2.4" WT, 3C MaxxTerra, EXO+, TR, folding |
| Spokes / nipples | DT Competition butted black stainless |
Drivetrain
| Rear shifter | SRAM NX Eagle |
| Rear derailleur | SRAM GX Eagle Lunar |
| Crankset | Truvativ Descendent 6K Eagle, 32T, 170mm |
| Bottom bracket | SRAM DUB BSA threaded |
| Cassette | SRAM PG1275 Eagle 10–52T |
| Chain | SRAM SX Eagle |
| Chain guide | Norco idler guide and lower guide |
Brakes
| Front brake | SRAM Code Bronze Stealth, 4-piston, sintered pads |
| Front rotor | SRAM Centerline 200mm |
| Rear brake | SRAM Code Bronze Stealth, 4-piston, sintered pads |
| Rear rotor | SRAM Centerline 180mm |
| Brake levers | SRAM Code Bronze Stealth |
Cockpit
| Handlebar | 6061 alloy, 800mm, 25mm rise |
| Stem | Alloy, 40mm length, 35mm clamp |
| Grips | DMR DeathGrip |
| Headset | FSA #57 E, sealed bearing |
Seat and post
| Seatpost | TranzX YS105 dropper, 34.9mm, 150mm (1), 170mm (2), 200mm (3,4), 230mm (5) |
| Saddle | SDG Bel Air V3 |
| Seatpost clamp | Norco alloy nutted clamp |
Weight
| Claimed weight | 15.6 kg (34.4 lbs) |
| Weight size | S3 |
Sizing and fit
Height ranges are based on Norco’s recommended sizing for the Sight platform. If you are between sizes, consider your riding style and preferred handling.
| Frame size | Recommended rider height | Approx. reach |
|---|---|---|
| Size 1 | 5'1" – 5'5" | 422.5 mm |
| Size 2 | 5'4" – 5'8" | 447.5 mm |
| Size 3 | 5'7" – 5'11" | 472.5 mm |
| Size 4 | 5'11" – 6'2" | 497.5 mm |
| Size 5 | 6'1" – 6'5" | 522.5 mm |
- Riders prioritizing stability at speed often choose the larger of two possible sizes.
- Riders who prefer a more playful, maneuverable feel may size down.
- If you are unsure, contact us with your height, inseam, and current bike for a personalized sizing recommendation.

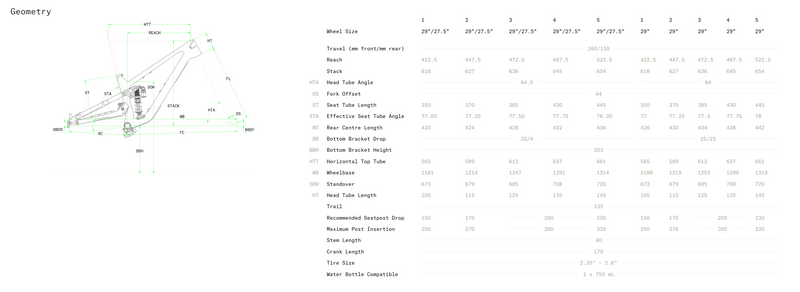

Frame geometry (mm and degrees) Tap to open chart
| 1 | 2 | 3 | 4 | 5 | |
|---|---|---|---|---|---|
| Wheel size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
| Travel (front/rear) | 160/150 | ||||
| Reach | 422.5 | 447.5 | 472.5 | 497.5 | 522.5 |
| Stack | 618 | 627 | 636 | 645 | 654 |
| Head tube angle | 64.0° | ||||
| Fork offset | 44 | ||||
| Seat tube length | 350 | 370 | 385 | 430 | 445 |
| Effective seat tube angle | 77.00° | 77.25° | 77.50° | 77.75° | 78.00° |
| Rear centre length | 420 | 424 | 428 | 432 | 436 |
| Bottom bracket drop (front/rear) | 25/4 | ||||
| Bottom bracket height | 353 | ||||
| Horizontal top tube | 565 | 589 | 613 | 637 | 661 |
| Wheelbase | 1181 | 1214 | 1247 | 1281 | 1314 |
| Standover | 673 | 679 | 685 | 708 | 720 |
| Head tube length | 105 | 115 | 125 | 135 | 145 |
| Trail | 135 | ||||
| Recommended seatpost drop | 150 | 170 | 200 | 200 | 230 |
| Maximum post insertion | 250 | 270 | 300 | 300 | 330 |
| Stem length | 40 | ||||
| Crank length | 170 | ||||
| Tire size | 2.35" – 2.6" | ||||
| Water bottle compatible | 1 x 750 mL | ||||
