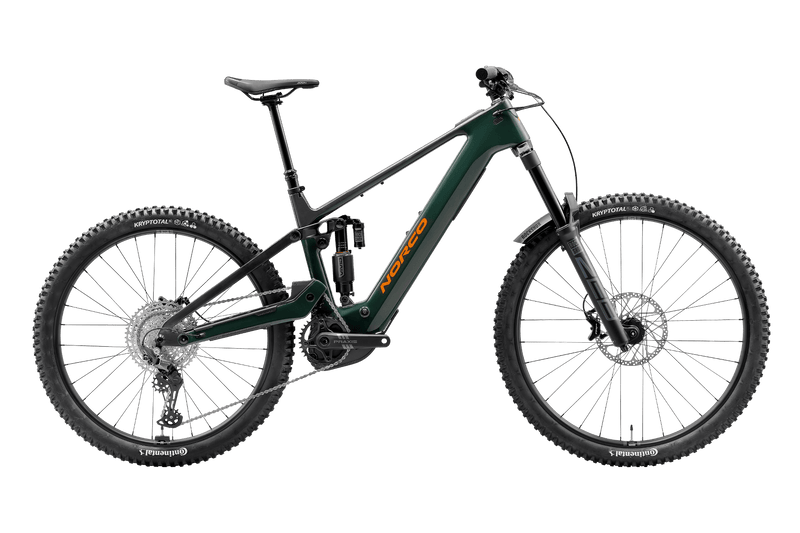

Range VLT CX C2 is Norco’s long-travel Bosch equipped enduro e-bike. It uses 170 mm front and 160 mm rear travel with a mixed 29 inch front and 27.5 inch rear wheel layout for steep, technical terrain. The latest Bosch Performance Line CX drive unit and 800 Wh PowerTube battery provide full power support in a relatively light package, while the VPSHP (Virtual Pivot Suspension | High Pivot) layout gives the rear wheel a rearward axle path that helps maintain momentum through square-edged hits and rough sections.
Key highlights
- 170 mm front / 160 mm rear travel carbon frame with Ride Aligned geometry tuned for aggressive enduro riding.
- VPSHP high pivot suspension with a rearward axle path that helps the rear wheel move out of the way of square-edged impacts.
- Mixed wheel setup with a 29 inch front wheel and 27.5 inch rear wheel for rollover up front and quicker handling at the back.
- RockShox Zeb Base fork and RockShox Vivid Air shock for consistent support on long, rough descents.
Bosch system
- Bosch Performance Line CX drive unit with 100 Nm of torque and up to 750 W peak power.
- Bosch PowerTube 800 Wh battery mounted in the downtube for long days in the bike park or on big alpine loops.
- Bosch BDU38 interface integrates the motor and battery into the frame for a clean installation.
- System is compatible with Bosch displays and controllers so you can choose the control setup that suits you.
Ride characteristics
- 63.5 degree head tube angle and long front center for stability on steep, technical trails.
- Steep effective seat tube angles keep the rider in a strong position for seated climbing.
- Four frame sizes (2 to 5) cover a wide range of rider heights with reach numbers from 441 to 516 mm.
- Continental Kryptotal F and R enduro tires on WTB ST i30 rims give predictable grip on mixed conditions trails.
Fit, setup, and recommended upgrades
- We want every rider, local or remote, to get the best performance from their new Range VLT.
- Local pickup customers: We can set suspension sag, rebound, and tire pressures so the bike is tuned correctly for your weight and local terrain.
- Shipped bikes: The Range VLT CX C2 arrives professionally assembled and test ridden. If you need help with suspension or cockpit setup at home, our staff can walk you through the basics or answer questions before your first ride.
- Recommended upgrades: Many riders choose to add pedals, body protection, or cockpit adjustments (grips, bar width, stem length) to match their riding style. If you would like suggestions, we can help you choose options that match your riding style and the Range VLT platform.
Range VLT CX C2 – Full specifications
Frameset
| Frame | Carbon frame, 160 mm travel, UDH, Eagle Transmission compatible, Ride Aligned |
| Fork | RockShox Zeb Base, 170 mm travel, 44 mm offset, fender included |
| Rear shock | RockShox Vivid Air Base, 205 x 65 mm TR |
Drivetrain
| Rear shifter | Shimano Deore SL-M6100-R, 12 speed |
| Rear derailleur | Shimano Deore RD-M6100, 12 speed |
| Crankset | Praxis HD aluminum Bosch cranks, 34T, 160 mm |
| Bottom bracket | Bosch BDU38 |
| Cassette | Shimano Deore CS-M6100-12, 10-51T, 12 speed |
| Chain | Shimano Deore XT CN-M8100, 12 speed |
Brakes
| Front brake | TRP Slate EVO, organic pads |
| Front rotor | TRP 203 mm, 2.3 mm thickness, 6-bolt |
| Rear brake | TRP Slate EVO, organic pads |
| Rear rotor | TRP RS01E, 180 mm, 2.3 mm thickness, 6-bolt |
| Brake levers | TRP Slate EVO |
Cockpit and contact points
| Handlebar | Norco 6061 DB alloy, 800 mm width, 25 mm rise |
| Stem | Norco alloy, 40 mm length, 35 mm clamp |
| Seatpost | TranzX YSP23KL, 31.6 mm, 150 mm (S2), 170 mm (S3), 200 mm (S4, S5) |
| Headset | FSA No.55 sealed bearing, 1 1/8 in – 1.8 in tapered (ZS44/28.6 | ZS56/40) |
| Saddle | Fizik Terra Aidon X5 |
| Grips | WTB Wavelength, 130 mm length |
Wheels and tires
| Front hub | Bear Pawls BMB-003, 15 x 110 mm Boost, 32H, 6-bolt |
| Rear hub | Bear Pawls BMB-007, 12 x 148 mm Boost, HG, 32H, 6-bolt |
| Rims | WTB ST i30, 30 mm internal width, 32H, 29 in / 27.5 in front and rear |
| Front tire | Continental Kryptotal-F, Enduro, Soft, 29 x 2.4 in, foldable |
| Rear tire | Continental Kryptotal-R, Enduro, Soft, 27.5 x 2.4 in, foldable |
| Spokes and nipples | Sapim Sprint DB |
Electric components
| Drive unit | Bosch Performance Line CX, 100 Nm / 750 W |
| Battery | Bosch PowerTube 800 Wh |
Sizing and fit
Height ranges and reach figures are based on Norco’s Range VLT CX sizing chart. If you are between sizes, compare stack and reach to a bike you already like.
| Size | Recommended height | Approx. reach |
|---|---|---|
| 2 | 5'4" – 5'8" | 441 mm |
| 3 | 5'7" – 6'0" | 466 mm |
| 4 | 5'10" – 6'3" | 491 mm |
| 5 | 6'2" – 6'5" | 516 mm |
- Riders who want more stability often choose the larger of two possible sizes.
- Riders with longer legs and shorter torsos may prefer the smaller size in the range.
- If you are unsure, contact us with your height, inseam, and current bike for a sizing check.
Frame geometry (mm and degrees) Tap to open chart
| 2 | 3 | 4 | 5 | |
|---|---|---|---|---|
| Wheel size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
| Travel (mm front / mm rear) | 170 / 160 | 170 / 160 | 170 / 160 | 170 / 160 |
| Reach | 441 | 466 | 491 | 516 |
| Stack | 631 | 640 | 650 | 659 |
| Head tube angle | 63.5 | 63.5 | 63.5 | 63.5 |
| Fork offset | 44 | 44 | 44 | 44 |
| Seat tube length | 395 | 415 | 445 | 475 |
| Effective seat tube angle | 76.5 | 77 | 77.25 | 77.5 |
| Rear centre length | 432 | 436 | 440 | 444 |
| Rear centre length at sag | 442 | 446 | 450 | 454 |
| Bottom bracket drop (front / rear) | 20.5 / 0 | 20.5 / 0 | 20.5 / 0 | 20.5 / 0 |
| Bottom bracket height | 353 | 353 | 353 | 353 |
| Horizontal top tube | 589 | 613 | 637 | 661 |
| Wheelbase | 1228 | 1261 | 1295 | 1328 |
| Standover | 705 | 711 | 718 | 733 |
| Head tube length | 115 | 125 | 135 | 145 |
| Trail | 138 | 138 | 138 | 138 |
| Recommended seatpost drop | 150 | 170 | 200 | |
| Maximum post insertion | 250 | 270 | 300 | 330 |
| Stem length | 40 | 40 | 40 | 40 |
| Crank length | 165 | 165 | 165 | 165 |
| Tire size | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" | 2.35" – 2.6" |
| Water bottle compatible | 1 × 620 ml | 1 × 620 ml | 1 × 750 ml | 1 × 750 ml |
