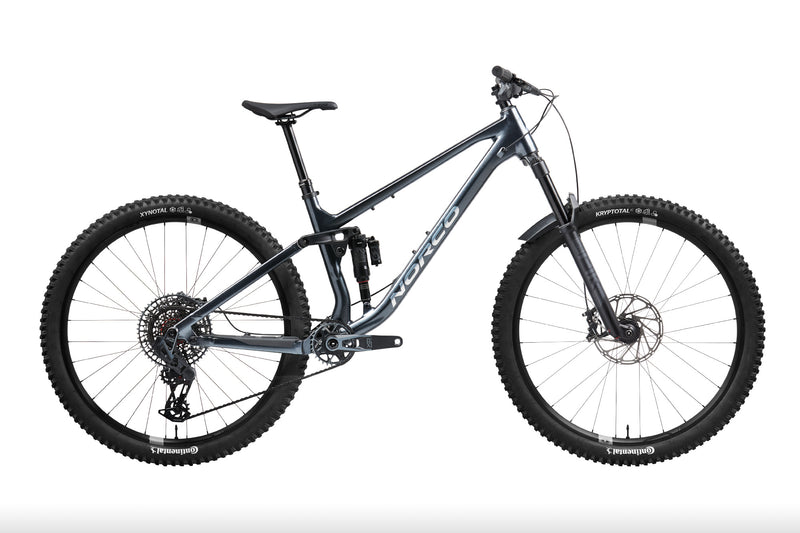

Norco Fluid FS A1 SRAM (2024). The Fluid FS A1 is built to tackle whatever trail leads to becoming the rider you want to be. It’s earned serious recognition along the way, including Pinkbike’s Value Bike of the Year, Vital MTB’s Bike of the Year, and Bicycling Magazine’s Best Value Trail Bike.
Designed to grow with you, the Fluid FS A1 pairs modern trail geometry with 130mm of rear travel and a 140mm fork, delivering a bike that’s confident, capable, and rewarding whether you’re progressing your skills or just riding for fun.
Key highlights
- Trail intent: Modern trail geometry with room to grow as skills evolve
- Suspension: 130mm rear travel paired with a 140mm fork
- Awards: Recognized by Pinkbike, Vital MTB, and Bicycling Magazine
- Fit system: Ride Aligned™ Design System for personalized setup
Suspension and drivetrain
- Fork: RockShox Pike Select+, 140mm
- Rear shock: RockShox Super Deluxe Select+, custom tune
- Drivetrain: SRAM GX Eagle AXS T-Type wireless shifting
- Brakes: SRAM DB8 4-piston hydraulic disc brakes
Ride characteristics
- Stable and confidence inspiring on technical descents
- Efficient pedaling for longer trail rides and climbs
- Balanced geometry that feels intuitive rather than extreme
- A true trail bike that doesn’t limit progression
Fit, setup, and recommended upgrades
- We want every rider, local or remote, to get the most out of their new Norco Fluid FS.
- Local pickup customers: We can dial in suspension sag, rebound, and tire pressure using Norco’s Ride Aligned™ system for your weight and riding style.
- Shipped bikes: Bikes arrive professionally assembled and test ridden. Our staff can help with setup questions before or after delivery.
- Recommended upgrades: Many riders add pedals, protective gear, or adjust cockpit setup (grips, bar width, stem length) to fine tune the fit.
Norco Fluid FS A1 SRAM (2024) – Full specifications
Frame
| Frame | 6061 Aluminum, 130mm travel, Ride Aligned™, UDH compatible |
| Bottom bracket | SRAM DUB BSA threaded |
| Pedals | Sold separately |
Suspension
| Fork | RockShox Pike Select+, 140mm, 44mm offset, fender included |
| Rear shock | RockShox Super Deluxe Select+, 210x50mm, custom tune |
Wheels and tires
| Rims | WTB ST Light, 29", 32H |
| Hubs | Bear Pawls, Boost, 6-bolt |
| Front tire | Continental Kryptotal Trail 2.4", folding |
| Rear tire | Continental Xynotal Trail 2.4", folding |
Drivetrain
| Shifter | SRAM Pod Controller with MMX |
| Rear derailleur | SRAM GX Eagle AXS T-Type |
| Cassette | SRAM 1275 Eagle T-Type 10–52T |
| Crankset | SRAM GX Eagle DUB T-Type, 30T |
| Chain | SRAM GX Eagle T-Type |
Brakes
| Brakes | SRAM DB8, 4-piston hydraulic disc |
| Front rotor | 200mm |
| Rear rotor | 180mm |
Cockpit
| Handlebar | 6061 Butted Alloy, 800mm, 25mm rise |
| Stem | 6061 Alloy, 40mm, 35mm clamp |
| Seatpost | TranzX YSI34 Dropper, size-specific travel |
| Saddle | SDG Bel Air V3 Lux Alloy |
| Grips | WTB Wavelength |
Sizing and fit
Height ranges are based on the manufacturer’s recommended sizing chart. If you are between sizes, comparing reach and stack to a current bike can help.
| Size | Recommended rider height | Reach |
|---|---|---|
| Small | 5'1"–5'5" | 420 mm |
| Medium | 5'5"–5'8" | 450 mm |
| Large | 5'8"–6'0" | 480 mm |
| X-Large | 6'0"–6'3" | 510 mm |
| XX-Large | 6'3"–6'7" | 540 mm |
- Riders seeking stability may prefer sizing up within a range.
- Riders prioritizing agility may prefer the smaller size.
- If unsure, contact us and we’ll help dial it in.

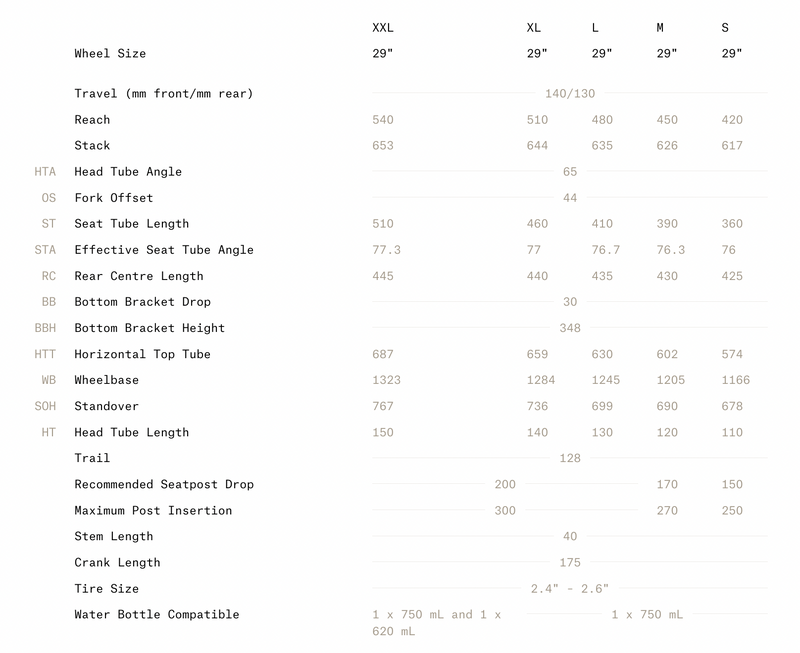

Frame geometry (mm and degrees) Tap to open chart
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Wheel size | 29" | 29" | 29" | 29" | 29" |
| Travel (front / rear) | 140 / 130 | ||||
| Reach | 420 | 450 | 480 | 510 | 540 |
| Stack | 617 | 626 | 635 | 644 | 653 |
| Head tube angle | 65° | ||||
| Fork offset | 44 | ||||
| Seat tube length | 360 | 390 | 410 | 460 | 510 |
| Effective seat tube angle | 76° | 76.3° | 76.7° | 77° | 77.3° |
| Rear center (chainstay) | 425 | 430 | 435 | 440 | 445 |
| Bottom bracket drop | 30 | ||||
| Bottom bracket height | 348 | ||||
| Top tube (effective) | 574 | 602 | 630 | 659 | 687 |
| Wheelbase | 1166 | 1205 | 1245 | 1284 | 1323 |
| Standover | 678 | 690 | 699 | 736 | 767 |
| Head tube length | 110 | 120 | 130 | 140 | 150 |
| Trail | 128 | ||||
| Recommended dropper travel | 150 | 170 | 200 | 200 | 200 |
| Maximum post insertion | 250 | 270 | 300 | 300 | 300 |
| Stem length | 40 | ||||
| Crank length | 175 | ||||
| Tire size | 2.4" – 2.6" | ||||
| Water bottle compatibility | 1 × 750 mL | 1 × 750 mL + 1 × 620 mL | |||
