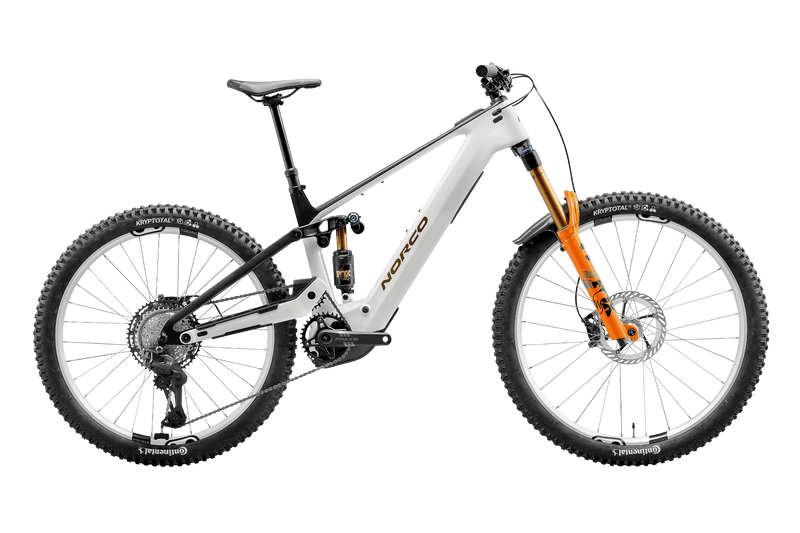

Range VLT CX C1 is a 170 / 160 mm travel e-enduro bike built for steep, technical trails. It pairs a low-weight full-power Bosch Performance Line CX motor with a large battery and Norco’s VPSHP high-pivot suspension to keep speed and control through rough sections.
Key highlights
- 170 mm front / 160 mm rear travel carbon chassis with Ride Aligned geometry for stability on steep terrain.
- RockShox Zeb Base fork and Vivid Air shock to handle repeated big hits and bike park style descents.
- VPSHP high-pivot suspension layout with a rearward axle path that helps the wheel move out of the way of square edged impacts.
- Mixed wheel setup with 29 inch front and 27.5 inch rear wheels for confidence up front and a more agile rear end.
Motor and system
- Bosch Performance Line CX drive unit delivering up to 100 Nm of torque with a full power feel.
- Integrated Bosch PowerTube 800 Wh battery for long days of descending focused riding.
- Efficient, lighter drive system compared to previous Bosch CX generations while maintaining output.
- Clean internal integration that keeps the motor and battery weight low in the frame.
Ride characteristics
- The high-pivot layout and chain idler are designed to keep the rear wheel tracking smoothly under braking and square edged bumps.
- The long travel and mixed wheel platform are aimed at riders who spend time on steep enduro tracks and bike park style terrain.
- Norco’s Ride Aligned geometry targets a centered position on the bike for climbing and descending.
- The frame is built to accept aggressive tires in the 2.35 to 2.6 inch range for traction driven setups.
Fit, setup, and recommended upgrades
- We want every rider, local or remote, to get the best performance from their new Range VLT CX C1.
- Local pickup customers: We can set suspension sag, rebound, and tire pressures so the bike is tuned correctly for your weight and local terrain.
- Shipped bikes: The bike arrives professionally assembled and test ridden. If you need help with suspension or cockpit setup at home, our staff can walk you through the basics or answer questions before your first ride.
- Recommended upgrades: Many riders choose to add pedals, body protection, or cockpit adjustments (grips, bar width, stem length) to match their riding style. If you would like suggestions, we can help you choose options that complement the Range VLT platform.
Range VLT CX C1 - Full specifications
Frame
| Frame | Carbon frame, 160 mm travel, UDH, Eagle Transmission compatible, Ride Aligned. |
Suspension
| Fork | RockShox Zeb Base, 170 mm travel, 44 mm offset, fender included. |
| Rear shock | RockShox Vivid Air Base, 205 x 65 mm TR. |
Wheels and tires
| Rims | WTB ST i30, 30 mm internal, 32 H, 29 / 27.5 front and rear. |
| Hubs | [F] Bear Pawls BMB 003, 15 x 110 mm Boost, 32 H, 6 bolt · [R] Bear Pawls BMB 007, 12 x 148 mm Boost, HG, 32 H, 6 bolt. |
| Spokes | Sapim Sprint DB. |
| Tires | [F] Continental Kryptotal F, Enduro, Soft, 29 x 2.4, foldable · [R] Continental Kryptotal R, Enduro, Soft, 27.5 x 2.4, foldable. |
Drivetrain
| Rear shifter | Shimano Deore SL M6100 R, 12 speed. |
| Rear derailleur | Shimano Deore RD M6100, 12 speed. |
| Crankset | Praxis HD aluminum Bosch cranks, 34 T, 160 mm. |
| Bottom bracket | Bosch BDU38. |
| Cassette | Shimano Deore CS M6100 12, 10 51 T, 12 speed. |
| Chain | Shimano Deore XT CN M8100, 12 speed. |
Brakes
| Front brake | TRP Slate EVO with organic pads. |
| Front rotor | TRP 203 mm, 2.3 mm thickness, 6 bolt. |
| Rear brake | TRP Slate EVO with organic pads. |
| Rear rotor | TRP RS01E, 180 mm, 2.3 mm thickness, 6 bolt. |
| Brake levers | TRP Slate EVO. |
Cockpit
| Handlebar | Norco 6061 DB alloy, 800 mm width, 25 mm rise. |
| Stem | Norco alloy, 40 mm length, 35 mm clamp. |
| Seatpost | TranzX YSP23KL, 31.6 mm, 150 mm (size 2), 170 mm (size 3), 200 mm (sizes 4 and 5). |
| Headset | FSA No.55 sealed bearing, 1 1/8 to 1.8 inch tapered (ZS44/28.6 | ZS56/40). |
| Saddle | Fizik Terra Aidon X5. |
| Grips | WTB Wavelength, 130 mm length. |
Motor and battery
| Drive unit | Bosch Performance Line CX, 100 Nm / 750 W. |
| Battery | Bosch PowerTube 800 Wh. |
Sizing and fit
Height ranges are based on Norco’s recommended sizing chart for the Range VLT platform. If you are between sizes, compare stack and reach to a bike you already like.
| Size | Recommended height (approx.) | Approx. reach |
|---|---|---|
| 2 | 5'4" - 5'8" (165 - 173 cm) | 441 mm |
| 3 | 5'7" - 5'11" (170 - 180 cm) | 466 mm |
| 4 | 5'10" - 6'2" (178 - 188 cm) | 491 mm |
| 5 | 6'1" - 6'5" (185 - 196 cm) | 516 mm |
- Riders who want more stability often choose the larger of two possible sizes.
- Riders with longer legs and shorter torsos may prefer the smaller size in the range.
- If you are unsure, contact us with your height, inseam, and current bike for a sizing check.
Frame geometry (mm and degrees) Tap to open chart
| 2 | 3 | 4 | 5 | |
|---|---|---|---|---|
| Wheel size | 29 / 27.5 | 29 / 27.5 | 29 / 27.5 | 29 / 27.5 |
| Travel (front / rear) | 170 / 160 | 170 / 160 | 170 / 160 | 170 / 160 |
| Reach | 441 | 466 | 491 | 516 |
| Stack | 631 | 640 | 650 | 659 |
| Head tube angle | 63.5 | 63.5 | 63.5 | 63.5 |
| Fork offset | 44 | 44 | 44 | 44 |
| Seat tube length | 395 | 415 | 445 | 475 |
| Effective seat tube angle | 76.5 | 77 | 77.25 | 77.5 |
| Rear centre length | 432 | 436 | 440 | 444 |
| Rear centre at sag | 442 | 446 | 450 | 454 |
| BB drop (front / rear) | 20.5 / 0 | 20.5 / 0 | 20.5 / 0 | 20.5 / 0 |
| BB height | 353 | 353 | 353 | 353 |
| Horizontal top tube | 589 | 613 | 637 | 661 |
| Wheelbase | 1228 | 1261 | 1295 | 1328 |
| Standover | 705 | 711 | 718 | 733 |
| Head tube length | 115 | 125 | 135 | 145 |
| Trail | 138 | 138 | 138 | 138 |
| Recommended seatpost drop | 150 | 170 | 200 | 200 |
| Maximum post insertion | 250 | 270 | 300 | 330 |
| Stem length | 40 | 40 | 40 | 40 |
| Crank length | 165 | 165 | 165 | 165 |
| Tire size | 2.35 - 2.6 | 2.35 - 2.6 | 2.35 - 2.6 | 2.35 - 2.6 |
| Water bottle compatibility | 1 × 620 ml | 1 × 620 ml | 1 × 750 ml | 1 × 750 ml |
