Ibis Ripmo AF 29"/MX - Frameset 2025
LIMITED PRE-SALE BIKE! Ships early October

Name: Ibis Ripmo AF 29"/MX - Frameset 2025
Brand: Ibis
SKU: 210000064141
Price: 2449.0 USD
Availability: InStock

SKU: 210000064141

Ibis

$2,449.00

$2,449.00 ~~$3,499.00~~

Sale Sold out

Shipping calculated at checkout.

Small

Medium

X-Medium

Large

X-Large

In Stock

Quantity must be 1 or more

The Ripmo AF legend continues, bringing big-mountain capability to a rugged, aluminum package — blending long-travel confidence with trail-friendly efficiency.

With 160mm front and 150mm rear travel, dw-link suspension, and Flip chips for using a 27.5” or 29” rear wheel, it’s built for steep descents, chunky terrain, and climbs better than it should. Progressive geometry and a durable frame make it ideal for riders who push hard and want a bike that can keep up, lap after lap. Whether you're racing enduro, exploring alpine singletrack, or sending the local lines, the Ripmo AF delivers the same legendary performance as its carbon sibling. The Ripmo AF has all of the same features as the carbon bike; in-frame storage with two bags, coil compatibility, progressive geometry, all at a more approachable price.

Frame Only

Component	Standard Component
Shock	RockShox Super Deluxe Select+ 230mm x 60mm

Size Specific Everything

Every rider deserves the same great ride feel, no matter their height or proportions. We use size specific seat tube angles and suspension kinematics to bring incredible balance and speed to all size riders. Even chainstay length and bottom bracket height are tailored to each frame size.

Our ultra low standovers give you the ability to size your frame based on horizontal fit without worrying about vertical clearances.

Nominal Size		SM	MD	XM	LG	XL
Seat Tube	A	395	400	415	457	477
Top Tube	B	578	605	630	655	685
Head Tube	C	85	95	110	125	140
Chainstay 29"	D	435	435	436	438	440
Chainstay MX	D	432	432	433	435	437
Seat Tube Angle	E	77°	76.5°	76.5°	77°	77.5°
Saddle Height for Seat Tube Angle	F	650	700	745	790	830
Head Tube Angle	G	64.5°	64.5°	64.5°	64.5°	64.5°
Wheelbase	H	1195	1219	1249	1286	1329
Stack	I	616	622	633	643	654
Reach	J	436	456	478	506	540
BB Height*		338	341	344	349	350
BB Drop 29"	K	36	33	30	27	24
Standover	L	693	734	757	772	784
Recommended Seatpost Drop		140	170	185	213	213
Crank Length		165	165	170	170	170
Tire Size		2.35-2.5"	2.35-2.5"	2.35-2.5"	2.35-2.5"	2.35-2.5"
Water Bottle Size		1 x 26oz	1 x 26oz	1 x 26oz	1 x 26oz	1 x 26oz

5 Sizes

We've added a third size in the middle of the bell curve to provide a fit that’s just right. With 80% of our riders falling between 5’5” and 6’0”, we introduced a new "Extra-Medium" size. The extra-medium now sits in the middle of our size range. If you are solidly a Large or XL previously, then your size remains the same.

Flip It

We’ve added more adjustability with a new flip chip - now you can run 29” or 27.5”/29” mixed (MX) wheels on all sizes without compromising the geometry. The Extra Medium and larger sizes ship with 29” wheels, while the Small and Medium sizes come with MX wheels.

DW-Link Suspension

We continue to use the critically acclaimed dw-link suspension platform known for its efficient climbing and strong downhill performance; it sets the standard for modern mountain bikes.

Drawing on the race-proven HD6 design, the Ripmo now has a coil spring friendly progressive shock rate and shorter clevis which makes it compatible with pretty much any coil shock.

Our size-specific kinematics make sure every size bike pedals amazing while still keeping things quiet and calm on challenging trails.

Internal Frame Storage

Get that gear off your back and into your bike with our frame storage system. The latch operates effortlessly, even in cold, muddy conditions while wearing gloves. The door is water-resistant, rattle-free, and robust.

Ibis has crafted a set of two internal bags for your snacks, tools, or whatever. The bags are crafted from durable, and water-resistant materials, with a bright interior to help see your stored items.

Lifetime Warranty

If it's our fault, we'll fix it. Simple as that.

Frame Specs

Version	V2
Frame Material	Aluminum
Wheel Size	Size XM–XL: 29” wheels
	Size SM–MD: MX wheels
	(MX or 29” option in all sizes via flip chip)
Front Travel	160mm
Rear Travel	150mm
Shock Specs	230mm x 60mm (coil shock compatible)
Boost Axles	148mm rear / 110mm front
Seatpost Diameter	34.9mm
Rear Brake	180mm Post mount / 220mm max rotor
Chainstay Length	29": 435–440mm, MX: 432–437mm
Bottom Bracket	Threaded (73mm English threaded)
Chainline	55mm chainline
Derailleur Hanger	SRAM UDH
ISCG 05 Compatible	ISCG 05 Tab Mount available separately
Headset	ZS44 upper / ZS56 lower
Bottle Mounts	26oz bottles fit inside the front triangle on all sizes
Frame Storage	Large Internal frame storage with easy access door
Frame Storage Bag	Ibis Stow bag

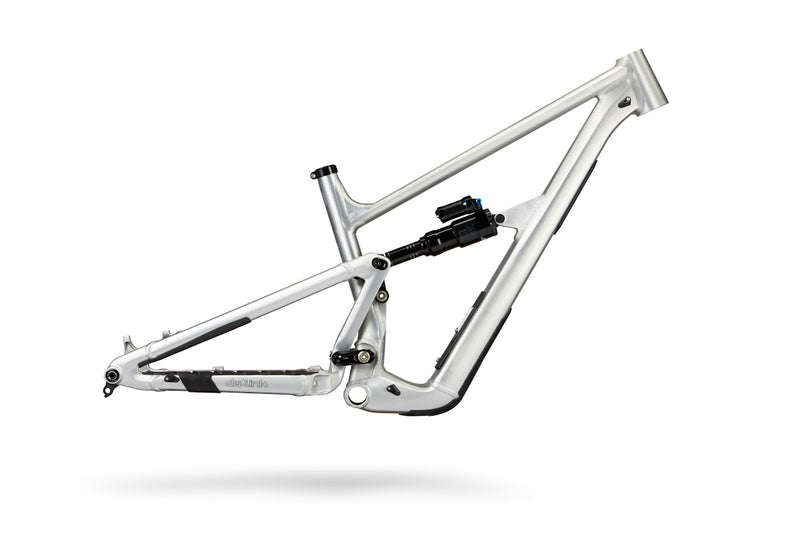

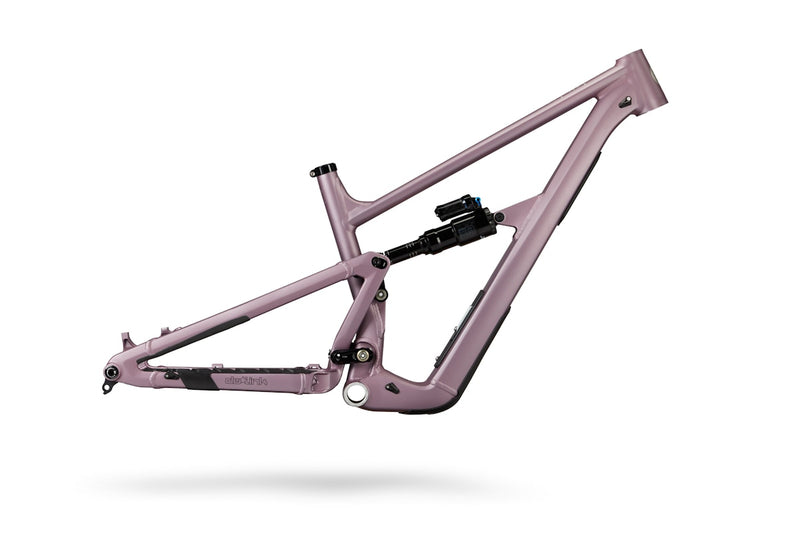

Colors	Metal AF or Rose Dust
Sizes	Small (S), Medium (M), Extra medium (XM), Large (L) and Extra Large (XL)
Warranty	Lifetime frame warranty
Bushings Warranty	Lifetime replacement on bushings
