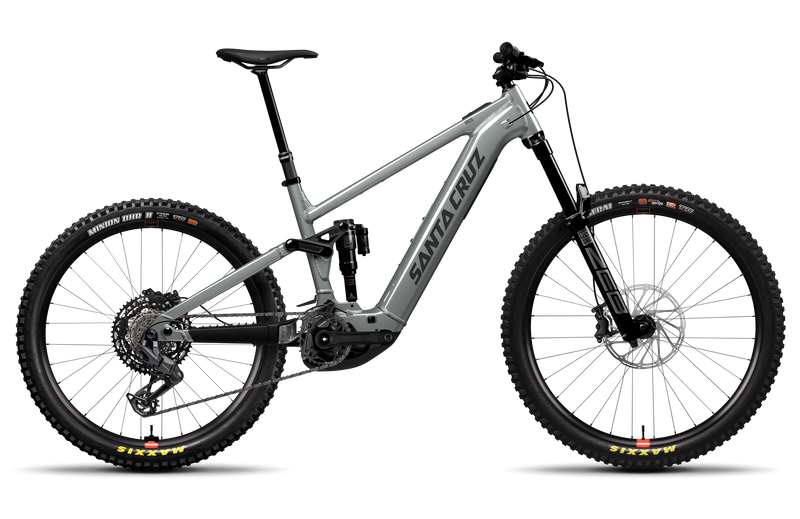

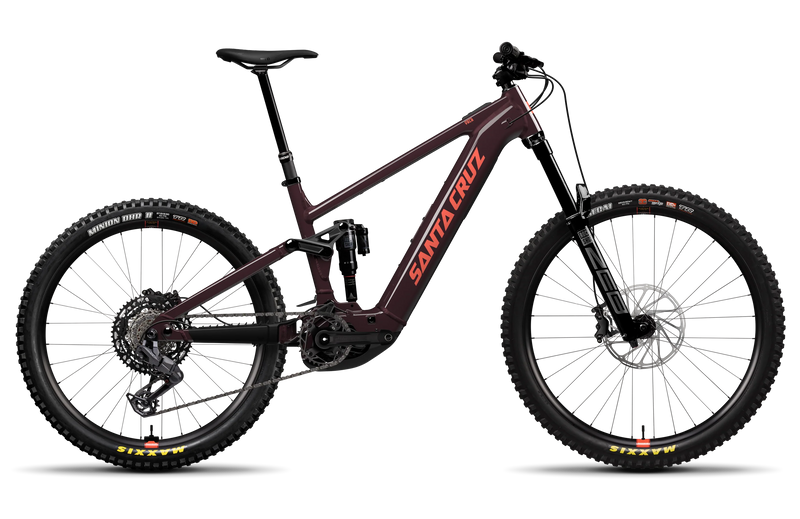

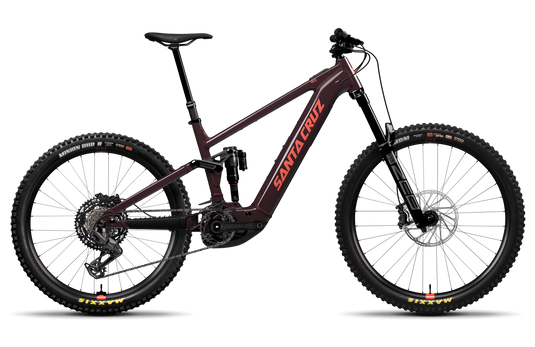

The Vala is a full-power ebike that delivers precision and power. It is made for riders looking for focused performance on the best trails with balanced handling, refined suspension, and Santa Cruz build quality.
Key highlights
- 150 mm rear / 160 mm front travel aluminum MX chassis with proven four-bar suspension.
- RockShox Zeb Base fork and Super Deluxe shock for confident control when trails get steep and rough.
- Reserve 30|HD AL wheels built for strength and reliability in demanding conditions.
- Maxxis Assegai / Minion DHR II tires in MaxxGrip and DoubleDown casings for strong traction and sidewall support in demanding terrain.
Bosch smart system
- Bosch Performance Line CX motor provides strong assist with a natural and controlled feel on climbs and rolling terrain.
- 600 Wh PowerTube battery tucked into the downtube for balanced weight distribution.
- Bosch controller and display give clear ride information and multiple assist modes.
- Class 1 assist up to 20 mph for compatibility with most trail access guidelines.
Ride characteristics
- The mixed-wheel layout, with a 29 inch front wheel and 27.5 inch rear wheel, offers front-end stability with a more agile rear feel.
- The longer-travel suspension provides support on rocky, root-filled, or steep terrain.
- The Maxxis tires give consistent traction across a wide range of trail conditions.
- The four-bar suspension layout provides a predictable response across different trail speeds and surfaces.
Fit, setup, and recommended upgrades
- We want every rider, local or remote, to get the best performance from their new Vala.
- Local pickup customers: We can set suspension sag, rebound, and tire pressures so the bike is tuned correctly for your weight and local terrain.
- Shipped bikes: The Vala arrives professionally assembled and test ridden. If you need help with suspension or cockpit setup at home, our staff can walk you through the basics or answer questions before your first ride.
- Recommended upgrades: Many riders choose to add pedals, body protection, or cockpit adjustments (grips, bar width, stem length) to match their riding style. If you would like suggestions, we can help you choose options that match your riding style and the Vala platform.
Eagle 70 Build: Full specifications
Frame
| Frame | Aluminum MX 150mm Travel 4-Bar |
| Warranty | Lifetime frame warranty for the original owner |
Suspension
| Fork | RockShox Zeb Base, 160mm |
| Rear Shock | RockShox Super Deluxe Base, 205x60 |
Wheels & Tires
| Rims/Wheels | Reserve 30|HD AL |
| Hubs | [F] SRAM MTH 716, 15×110, 6-Bolt, 32h · [R] SRAM MTH 746, 12×148, HG, 6-Bolt, 32h |
| Spokes | N/A |
| Tires | [F] Maxxis Assegai 29×2.5", 3C MaxxGrip, EXO+ · [R] Maxxis Minion DHR II 27.5×2.5", DoubleDown |
Drivetrain
| Crankset | E13 Helix eSpec, 160mm |
| Chain | SRAM 70 Eagle T-Type, Flattop, 12-speed |
| Rear Derailleur | SRAM 70 Eagle T-Type, 12-speed |
| Cassette | SRAM XS 1270, 10–52t |
| Shifters | SRAM 90 Eagle T-Type, Single Click |
| Chain Guide | OneUp Chainguide |
Brakes
| Brakes | SRAM DB8 w/ SRAM Centerline 200/220mm Rotors |
| Brake Levers | N/A |
Cockpit
| Handlebars | Santa Cruz Alloy |
| Stem | OneUp Forged, 42mm |
| Saddle | WTB Silverado Medium, Steel |
| Seat Post | SDG Tellis Dropper, 31.6 |
Motor & Battery
| Motor | Bosch Performance CX BDU38 |
| Battery | Bosch PowerTube 600Wh |
| Display / Controller | Bosch |
| Max Assisted Speed | 20 MPH |
Sizing and fit
Height ranges and reach figures are based on the Santa Cruz Vala AL 70 sizing chart. If you are between sizes, compare stack and reach to a bike you already like.
| Size | Recommended height | Approx. reach |
|---|---|---|
| Small | 5'1" – 5'5" | 435 mm |
| Medium | 5'5" – 5'9" | 460 mm |
| Large | 5'9" – 6'1" | 480 mm |
| X-Large | 6'0" – 6'4" | 500 mm |
- Riders who want more stability often choose the larger of two possible sizes.
- Riders with longer legs and shorter torsos may prefer the smaller size in the range.
- If you are unsure, contact us with your height, inseam, and current bike for a sizing check.
Frame geometry (mm and degrees) Tap to open chart
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 433 | 458 | 478 | 498 |
| Stack | 625 | 634 | 643 | 656 |
| Head tube angle | 64.1° | 64.1° | 64.1° | 64.1° |
| Head tube length | 110 | 120 | 130 | 145 |
| Rear center | 440 | 440 | 445 | 445 |
| Front center | 771 | 800 | 825 | 851 |
| BB height | 342 | 342 | 342 | 342 |
| BB drop front | 30 | 30 | 30 | 30 |
| BB drop rear | 13 | 13 | 13 | 13 |
| Wheelbase | 1211 | 1241 | 1270 | 1297 |
| Top tube length | 578 | 606 | 628 | 652 |
| Seat tube length | 380 | 400 | 420 | 460 |
| Seat tube angle | 76.9° | 76.9° | 76.8° | 76.8° |
| Standover height | 744 | 745 | 729 | 732 |
