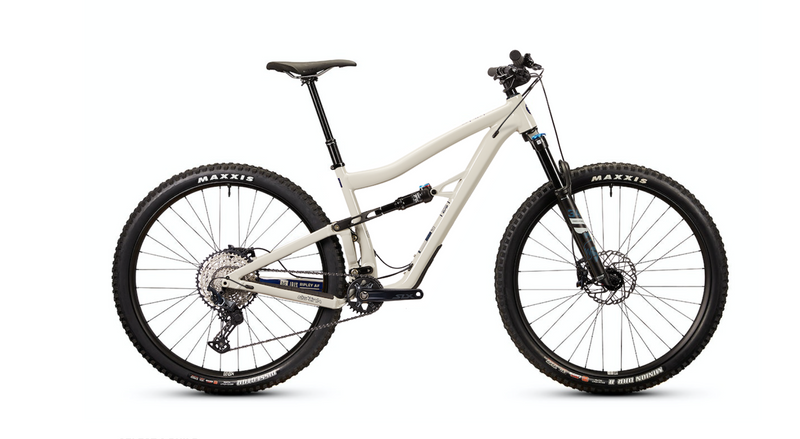

The Ripley AF is a beloved, category-defying, short-travel, singletrack-scorching Ripley - rendered in aluminum, with more aggressive geometry. All the sizzle and pop of the carbon Ripley, now available as a complete bike at a wallet friendly price.
A trail-friendly 65.5‑degree head angle and short (44mm) offset 130mm fork combined with 29” wheels makes for a super planted but still playful front end feel. A 76-degree seat angle puts your power directly to the pedals, while the short chainstays and pedal-friendly dw-link kinematics deliver that power without squandering a single watt.
|Fork||Fox Performance Series, Float 34, 130mm, 44mm offset, 29”, 110x15mm|
|Shock||Fox Performance Series Float DPS with EVOL, 190mm x 45mm|
|Wheels||Blackbird Send Alloy (Send I front, Send II rear) / 29" / Ibis Hubs|
|Tires||Maxxis DHR2 29" x 2.4" Exo TR (front), Maxxis Dissector 29" x 2.4" Exo TR (rear)|
|Brakes||Shimano SLX M7100|
|Brake Rotors||Shimano SM-RT66, 180mm|
|Cranks||Shimano SLX M7100 24mm spindle, 30t Alloy Ring
|Bottom Bracket||Shimano SLX BB52|
|Rear Derailleur||Shimano SLX M7100 Shadow Plus|
|Shift Levers||Shimano SLX M7100|
|Cassette||Shimano SLX, 10-51T|
|Chain||Shimano SLX M7100|
|Headset||Cane Creek 40 ZS44/ZS56|
|Grips||Lizard Skin Charger Evo|
|Handlebar||Ibis Aluminum, 780mm|
S/M: 40mm, L/XL: 50mm
|Seatpost||Bike Yoke Revive Dropper
S: 125mm, M: 160mm, L: 185mm, XL: 213mm. Note there is a 250lb rider weight limit on this post.
|Saddle||WTB Volt 142|
